<< A >> Input Shaft Assembly / Output Gear Assembly / Differential Assembly Removal

  1. Slightly lift the output gear assembly to remove the input shaft assembly.

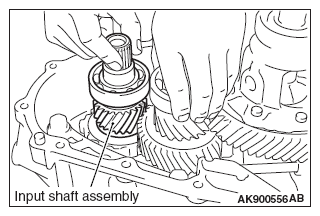

    Fig 1: Removing/Installing Input Shaft Assembly
    G08297484Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Remove the output gear assembly together with the differential assembly.

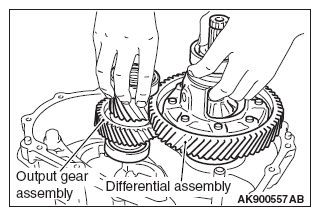

    Fig 2: Removing/Installing Output Gear Assembly And Differential Assembly
    G08297485Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
