Removal And Installation: Notes

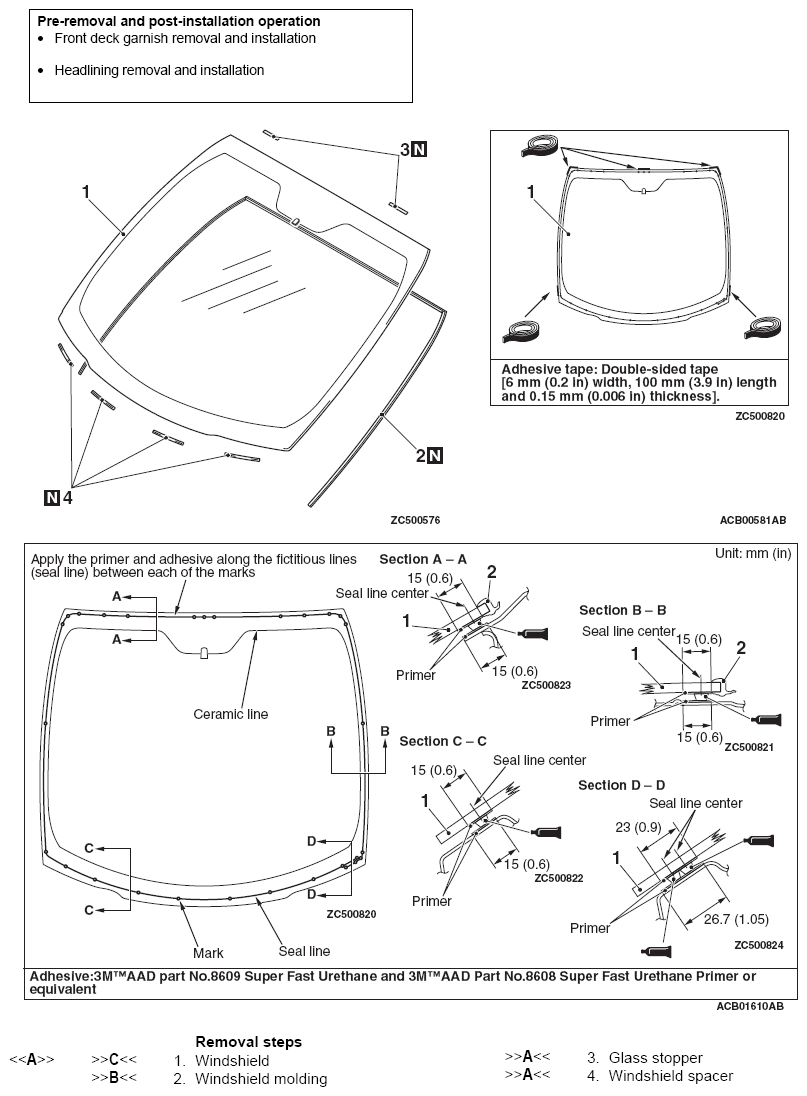

Fig 1: Removing Order Of Windshield Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
