Removal And Installation: Notes
WARNING:
For removal and installation of the passenger's side air bag module, always observe the service procedures described in
DRIVER'S AIR BAG MODULE AND CLOCK SPRING
.

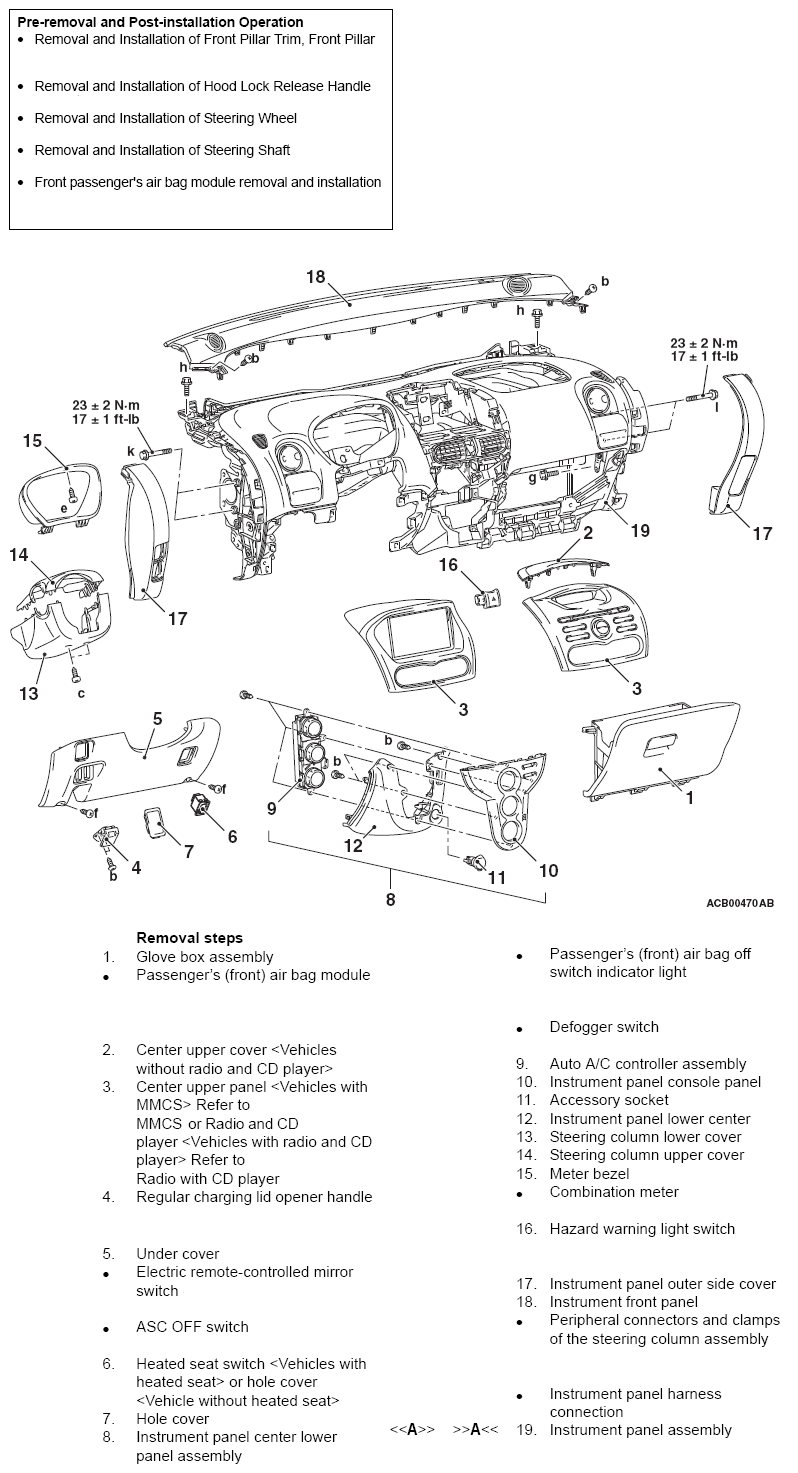

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustrations in REMOVAL AND INSTALLATION and DISASSEMBLY AND ASSEMBLY .
| Name | Symbol | Size (D x L) mm | Color | Shape |
|---|---|---|---|---|
| Tapping screw | a | 5 x 12 | - | |
| b | 5 x 16 | - | ||
| c | 5 x 20 | - | ||
| d | 5 x 12 | - | ||
| e | 5 x 16 | - | ||
| f | 5 x 16 | Black | ||
| Machine flange screw | g | 6 x 16 | - | |
| Bolt with washer | h | 6 x 16 | - | |
| i | 6 x 16 | - | ||
| j | 6 x 20 | - | ||
| k | 8 x 37 | Black | ||
| l | 8 x 60 | - | ||
| D: Thread diameter, L: Effective thread length | ||||
CAUTION:
- Refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING before removing the passenger side air bag module.
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
