Removal And Installation: Notes

CAUTION: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and SIDE-AIRBAG MODULE(S) .

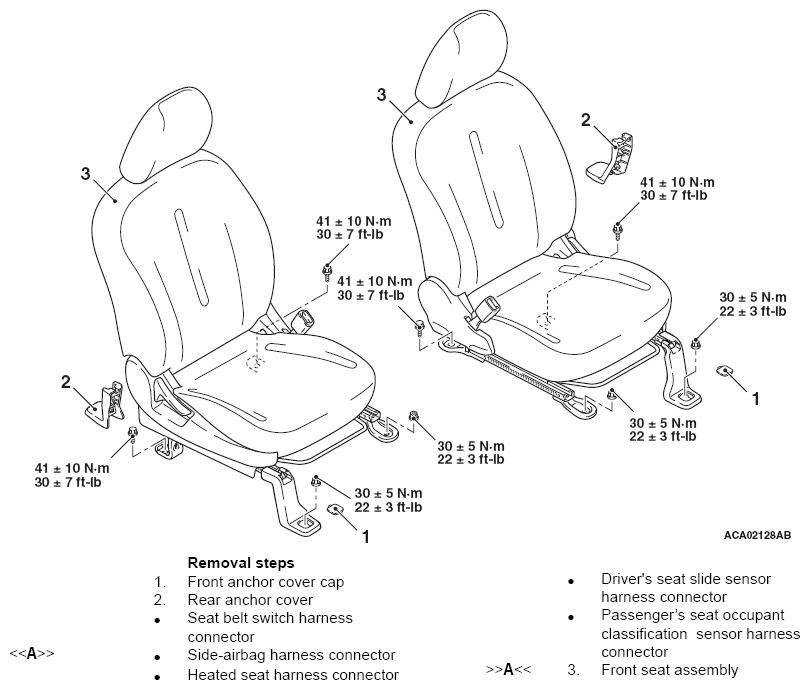

Fig 1: Removing Order Of Front Seat Assembly With Torque Specifications
G08303444Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
