Removal And Installation

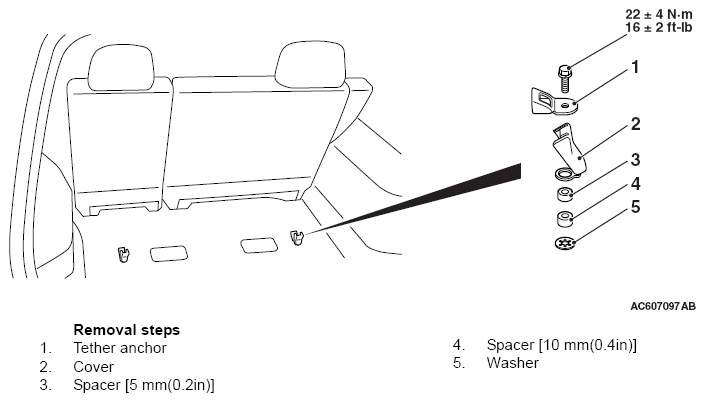

Fig 1: Removing Order Of Tether Anchor With Torque Specification
G08303463Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
