>> D << Cable Cover Installation

After routing the transaxle control cable to the vehicle interior, fix the cable while hooking the cable cover tip onto the positioning protector.

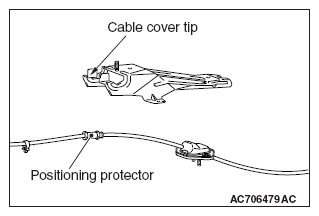

Fig 1: Identifying Cable Cover Tip And Positioning Protector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Align the positioning protector flange with the cable cover tip.

Fig 2: Identifying Alignment Position Of Positioning Protector Flange With Cable Cover Tip
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
