Disassembly And Reassembly: Notes

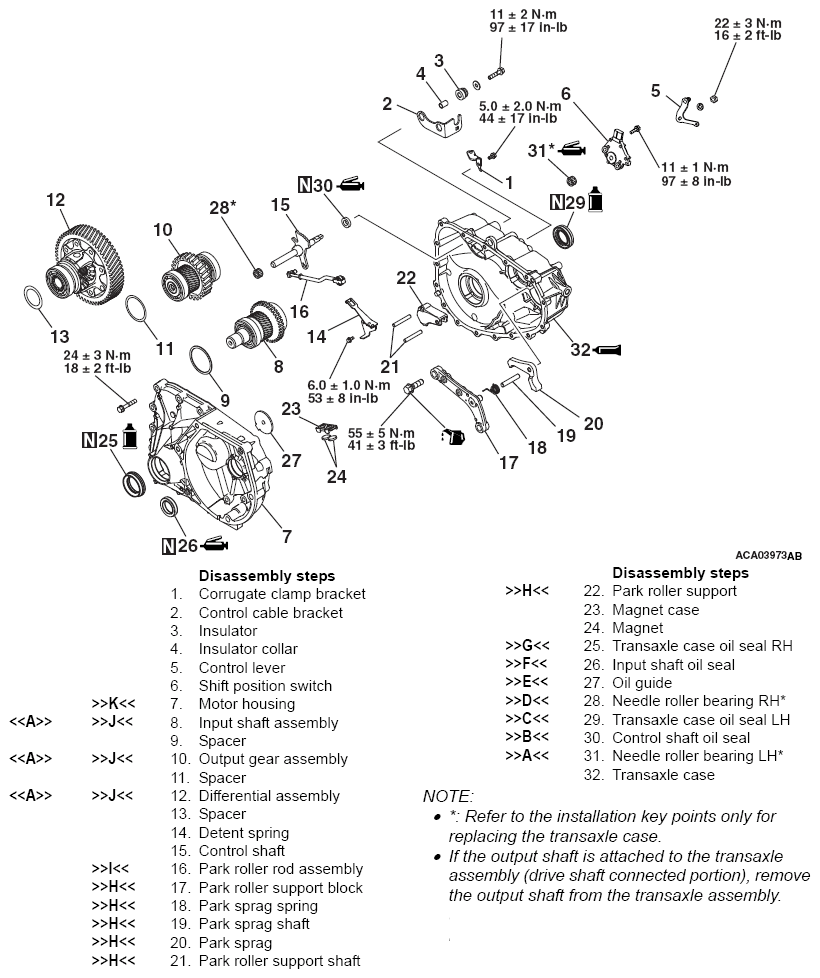

Fig 1: Disassembling Order Of Transaxle Components With Torque Specifications
G08297483Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
  • *: Refer to the installation key points only for replacing the transaxle case.
  • If the output shaft is attached to the transaxle assembly (drive shaft connected portion), remove the output shaft from the transaxle assembly. (Refer to DRIVESHAFT ASSEMBLYREMOVAL AND INSTALLATION ) .
