Control Lever Operating Torque Measurement

Measure the torque when each shift position is operated on the fixed nut at the control shaft side.

REFERENCE VALUE

Lever position	Operation torque N.m (in-lb)
P → R (parking system: engagement)	2.4 - 3.5 (23 - 31)
R → P	2.0 - 3.0 (18 - 26)
R <==> N <==> D <==> Eco <==> B	1.4 - 2.0 (13 - 17)

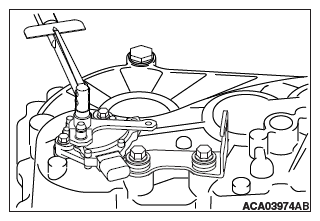

Fig 1: Measuring Control Lever Operating Torque Using Tool

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
