USB Adapter Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the USB adapter. (Refer to USB ADAPTER REMOVAL AND INSTALLATION  )
  2. Check that the continuity exists between the front side terminals of USB adapter and rear side terminals of USB adapter.
    TERMINALS CONTINUITY REFERENCE CHART

    Front side terminal Rear side terminal Measurement value
    1 1 Continuity exists (2 Ω or less)
    2 2
    3 3
    4 4

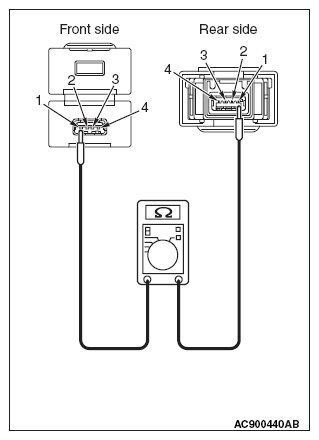

    Fig 1: Checking Continuity Of USB Adapter
    G07667403Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
