Cruise Control Switch Check

Remove the cruise control switch. Refer to < 2.0L ENGINE NON-TURBO, 2.4L ENGINE > or < 2.0L ENGINE Turbo. >

Measure the resistance between terminal number 2 and terminal number 3 when each of the "ON/OFF", "CANCEL", "COAST/SET" and "ACC/RES" switches is pressed. If the values measured at the time each switch is pressed correspond to those in the table below, the resistance values are correct.

CRUISE CONTROL SWITCH CONDITIONS

Terminal connector of tester	Switch position	Specified condition
2 - 3	All switches are released.	Open circuit
	"ON/OFF" switch is pressed	Continuity (less than 2 ohms)
	"CANCEL" switch is pressed	202.5 - 208 Ω
	"COAST/SET" switch is pressed	610.5 - 624.5 Ω
	"ACC/RES" switch is pressed	1838 - 1877 Ω

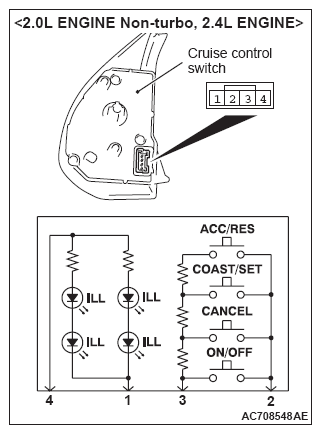

Fig 1: Cruise Control Circuit Switch Connector End View (2.0L Engine Non-Turbo, 2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check that the cruise control switch illuminates when a positive battery terminal is connected to the connector terminal number 4, and terminal number 1 is grounded.

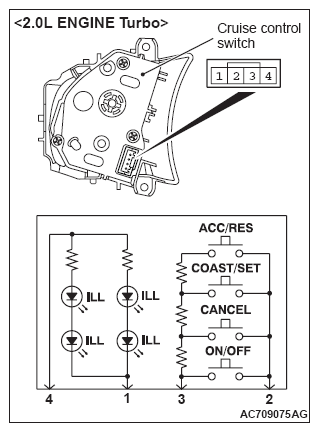

Fig 2: Cruise Control Circuit Switch Connector End View (2.0L Engine Turbo)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
