Disassembly And Assembly: Notes

NOTE: For additional service information, refer to TSB APPLICATION OF SILICONE GREASE ADDED - SERVICE MANUAL REVISION .

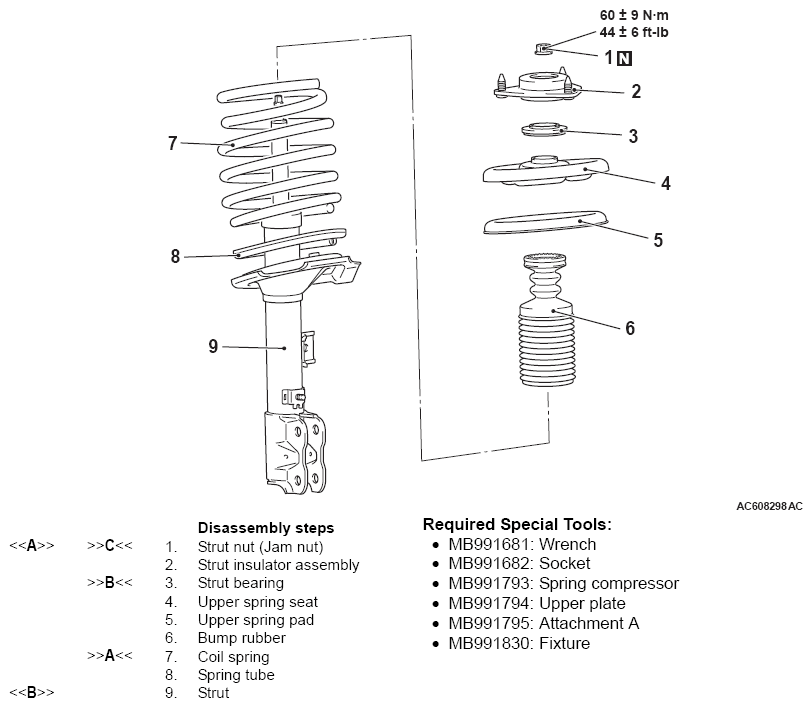

Fig 1: Exploded View Of Front Strut Assembly With Torque Specifications
G08293821Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
