Periodic Reminder Schedule Set

The service reminder schedule can be changed.

NOTE: In addition to the operation of the scan tool MB991958, the schedule can be changed by operating the meter information switch on the combination meter. Refer to HOW TO SET THE SCHEDULE .

On the "Service Reminder" screen, select "5 Periodic reminder schedule set."
NOTE: The screen indicates that the current schedule (No. 7 in the data list) has been set to "NAS 1-1."

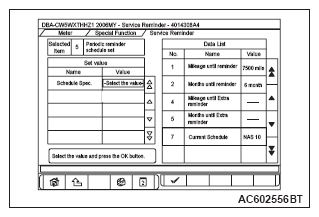

Fig 1: Display - Scan Tool Periodic Reminder Schedule Set Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the schedule to be changed from "Set value."
Press the "OK" button.

Fig 2: Display - Scan Tool Periodic Reminder Schedule Set Value Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The schedule is changed.
NOTE: The screen indicates that the current schedule (No. 7 in the data list) has been changed to "NAS 1-2."

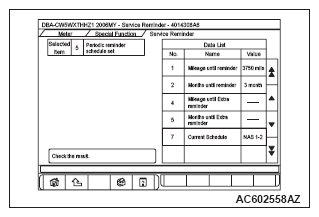

Fig 3: Display - Scan Tool Periodic Reminder Schedule Set Value Screen (Checking Result)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
