<<C>> Seal/Seal Washer Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Remove the seal washer to prevent scratching the valve of the TPMS transmitter.

Hold the TPMS transmitter and the seal washer, then extract the seal washer. Take care to not damage the valve thread.

Fig 1: Holding TPMS Transmitter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Clean the TPMS transmitter and the valve stem. <In case of not removing the valve>
NOTE: If the valve comes out from the transmitter, install it to where it was. (This is not failure)

Fig 2: Cleaning TPMS Transmitter And Valve Stem Holding
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Removal the valve from housing as shown in the illustration below.

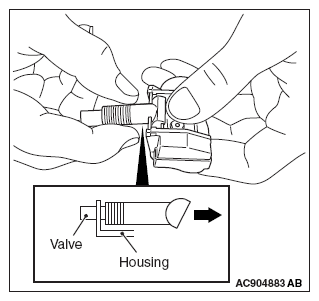

Fig 3: Removing Valve From Housing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
