Inspection Procedure 11: The Picture And Sound Of Audio And Video Adapter's Input Are Not Played: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:

Whenever the multivision display is replaced, ensure that the power supply circuit and the grounding circuit are normal. (Check that the voltage is 10 V or more.)

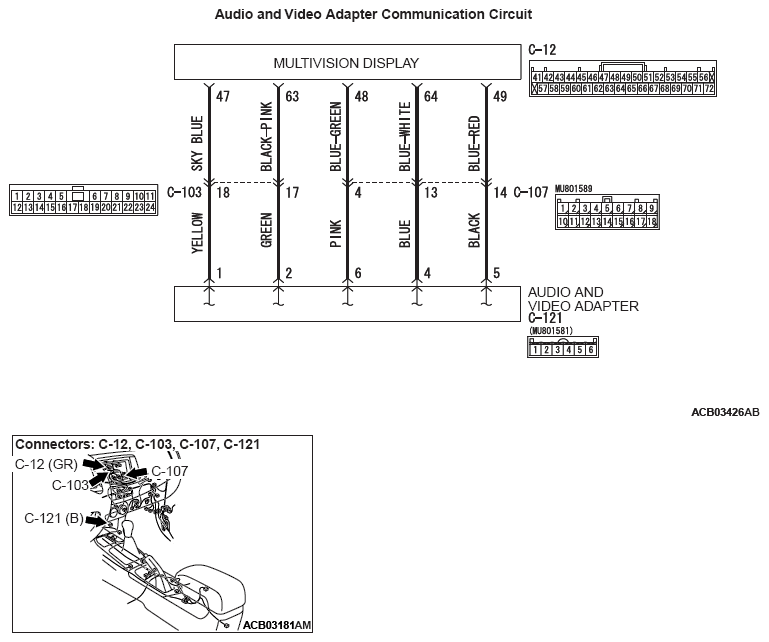

Fig 1: Audio And Video Adapter Communication Circuit Diagram
G08296277Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
