Can-Related Connector Position
WARNING: This page is about a different variant/trim than selected.

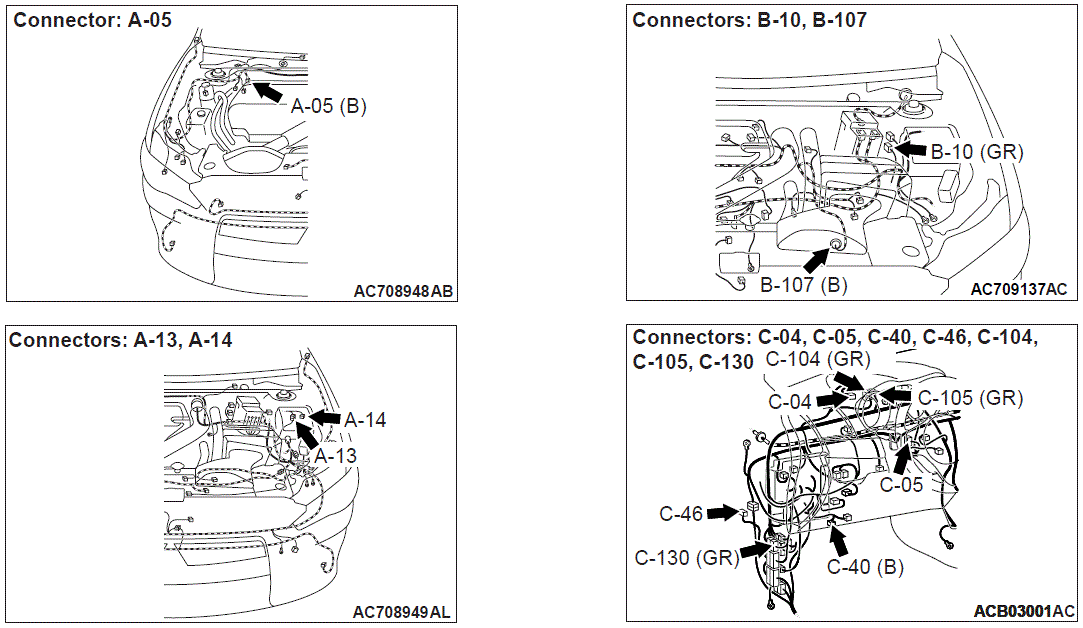

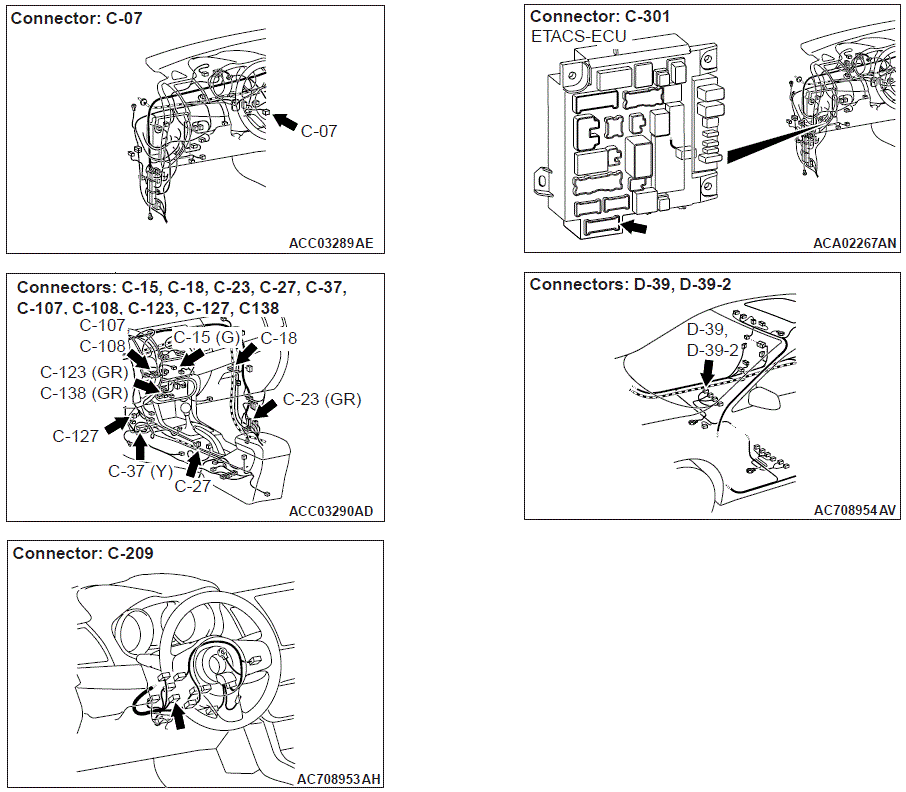

CONNECTOR SPECIFICATION
| Connector No. | Connector name |
|---|---|
| A-05 | ASC-ECU |
| A-13 | Intermediate connector (Front wiring harness and control wiring harness combination) <TC-SST> |
| A-14 | Joint connector (CAN4) <TC-SST> |
| B-10 | ECM |
| B-107 | Transaxle assembly <TC-SST> |
| C-04 | Combination meter |
| C-05 | KOS-ECU <Vehicles with KOS> |
| C-07 | Wireless control module <Vehicles with WCM> |
| C-15 | CAN box unit <Vehicles with MMCS> |
| C-18 | Satellite radio tuner |
| C-23 | Intermediate connector (Instrument panel wiring harness and floor wiring harness combination) |
| C-27 | Shift lever <TC-SST> |
| C-37 | SRS-ECU |
| C-40 | Data link connector |
| C-46 | AWC-ECU |
| C-104 | Joint connector (CAN2) |
| C-105 | Joint connector (CAN1) |
| C-107 | Radio and CD player <Vehicles without MMCS> |
| C-108 | Intermediate connector (Instrument panel wiring harness and multivision display wiring harness combination) <Vehicles with MMCS> |
| C-123 | A/C control panel |
| C-127 | Joint connector (CAN3) |
| C-130 | Intermediate connector (Instrument panel wiring harness and front wiring harness combination) |
| C-138 | Heater control panel |
| C-209 | Steering wheel sensor |
| C-301 | ETACS-ECU |
| D-39 | Front seat assembly (LH) |
| D-39-2 | Occupant classification-ECU |
