Removal And Installation: Notes

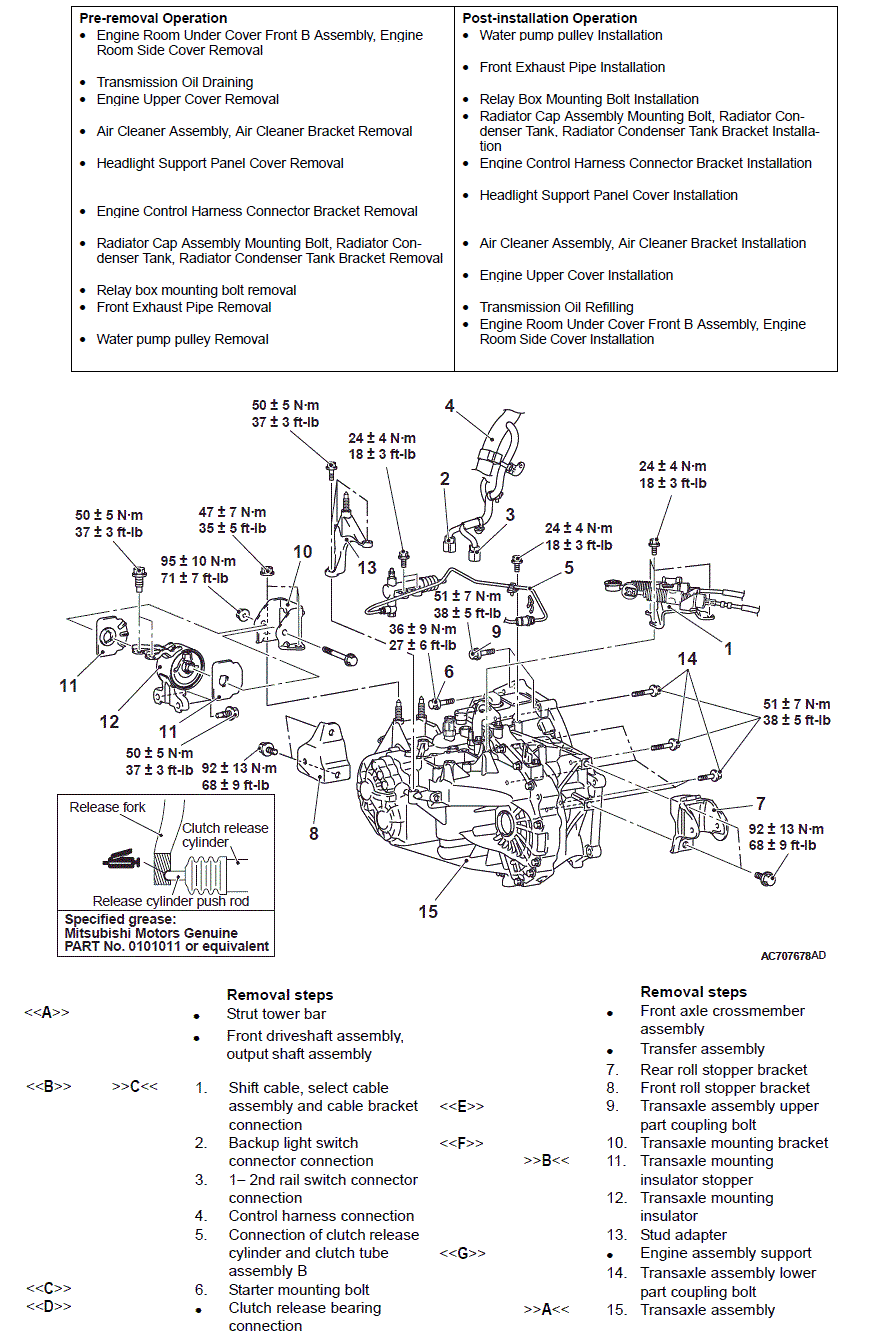

Fig 1: Removal/Installation Transaxle Assembly Components With Torque Specifications
G00538206Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
