Disassembly And Assembly: Notes

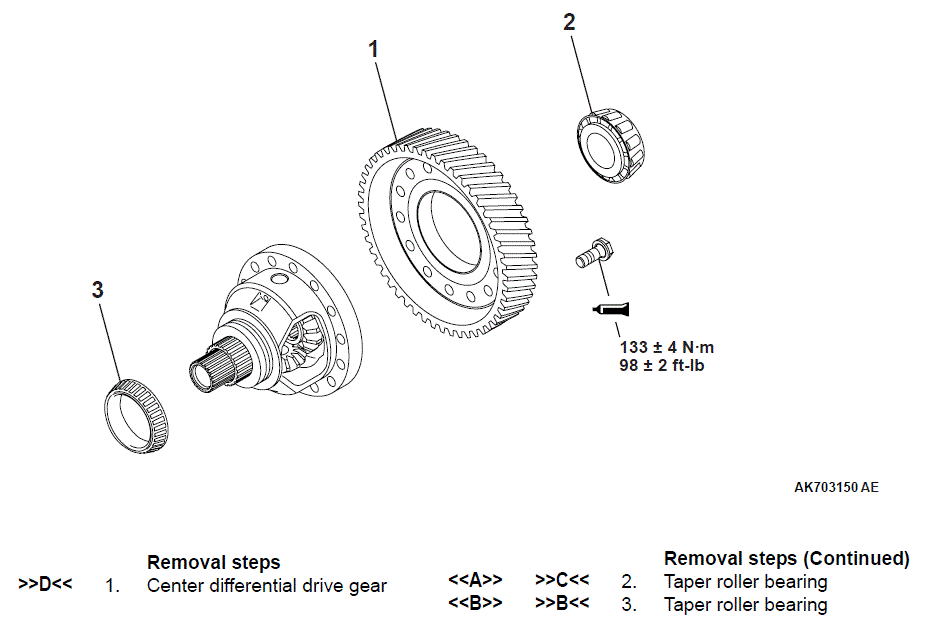

Fig 1: Center Differential Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

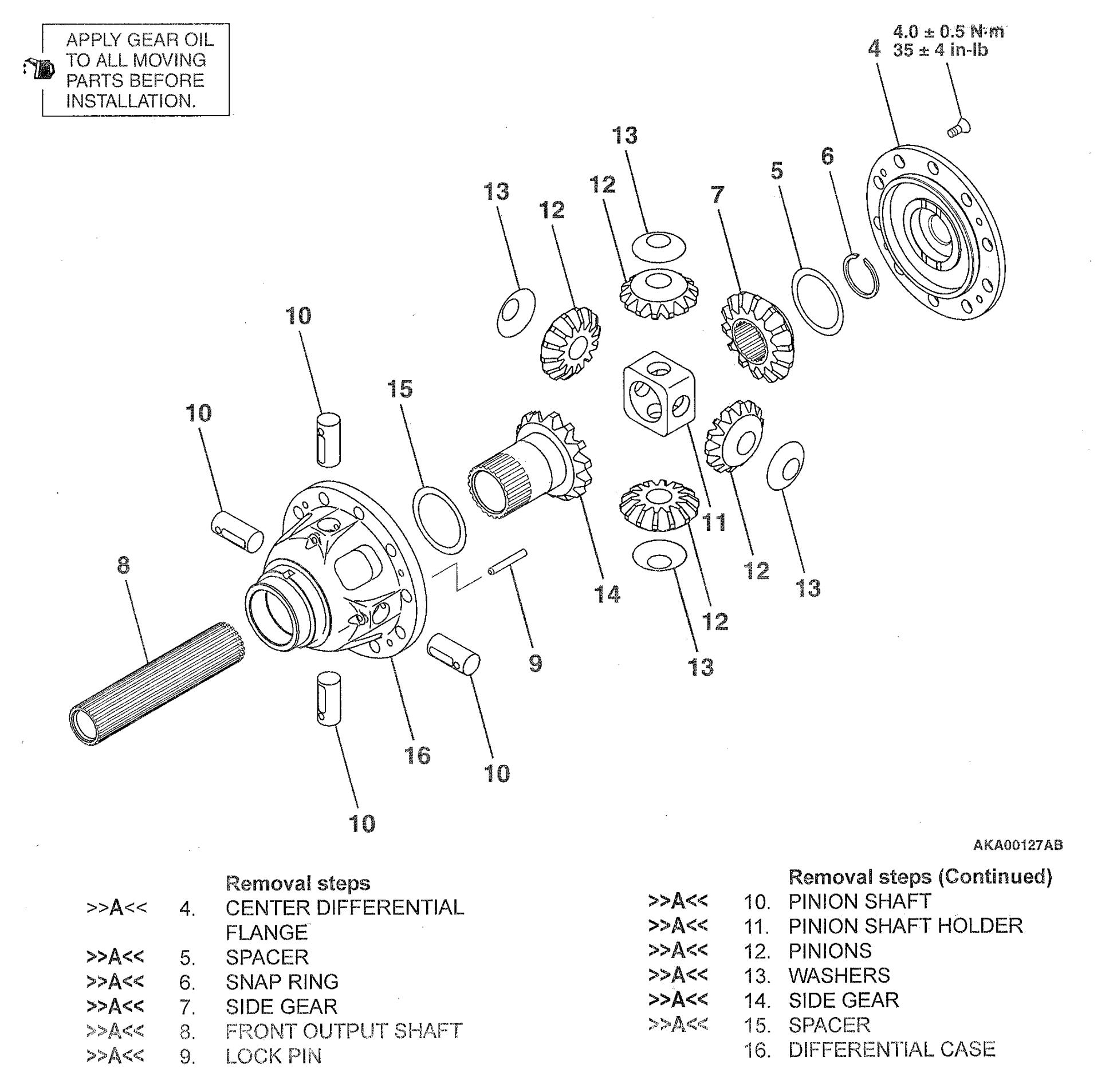

Fig 2: Exploded View Of Center Differential With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998917: Bearing remover
• MD999547: Oil seal installer
• MD998812: Installer cap
• MD998813: Installer-100
• MD998830: Installer adapter (66)
• MD992272: Bearing installer
• MB990847: Rear suspension bushing remover and installer base
