Body Main Cross-Sectional Views

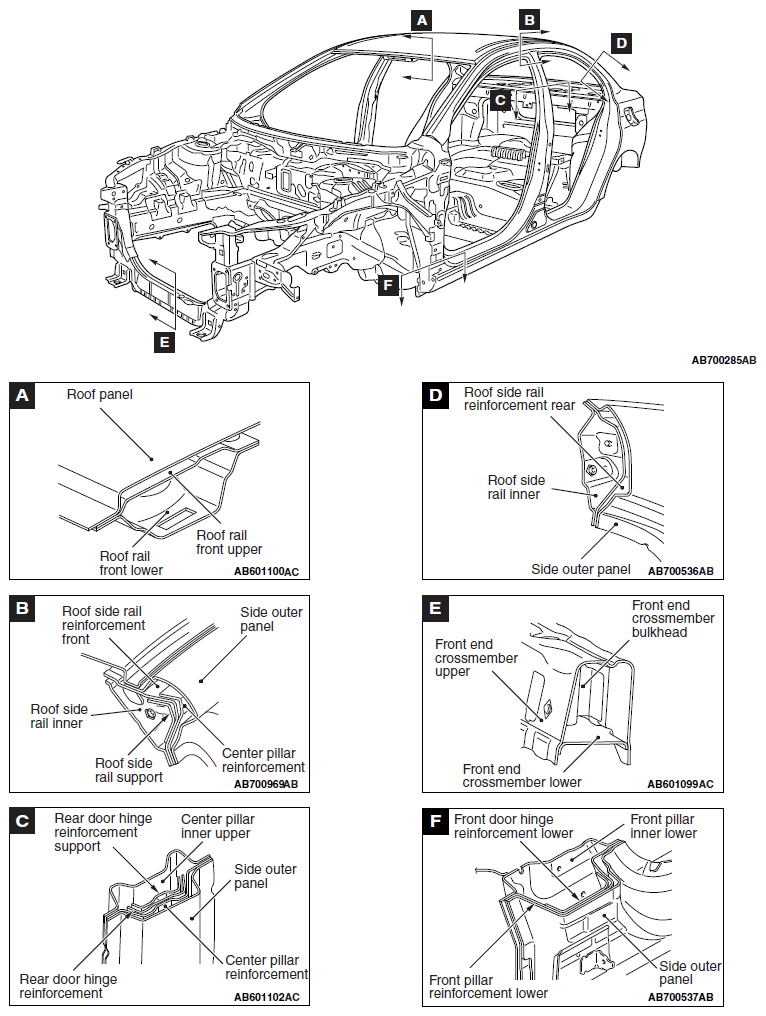

G11493024Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

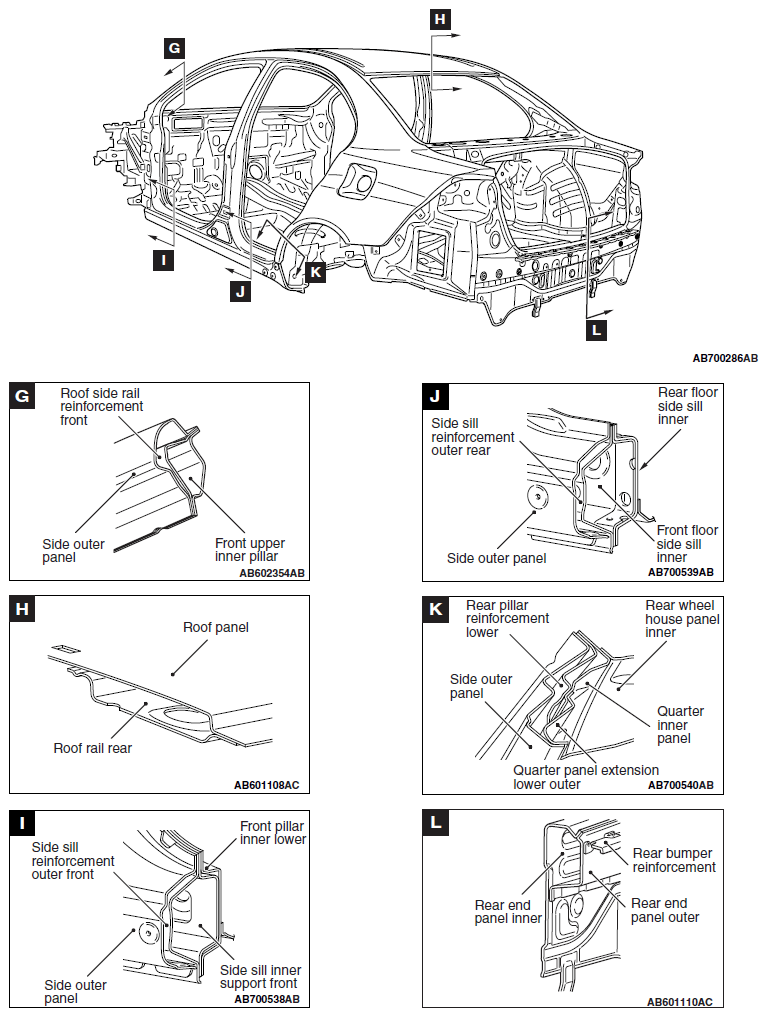

G11493025Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
