Inspection Procedure 12: Keyless Entry System Does Not Work: Notes

CAUTION:

Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

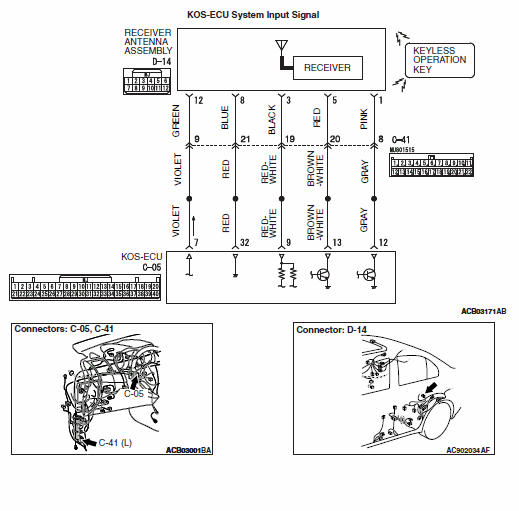

Fig 1: KOS-ECU System Input Signal Circuit Diagram
G00529021Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
