The USB Adapter Data Cannot Be Replayed - Vehicles With MMCS: Notes

CAUTION:

Before replacing the USB box, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

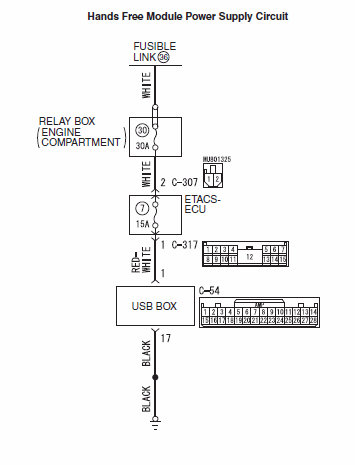

Fig 1: Hands Free Module Power Supply Circuit
G00527891Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

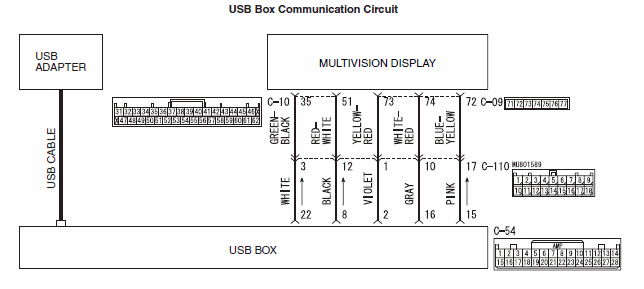

Fig 2: USB Box Communication Circuit
G00516485Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

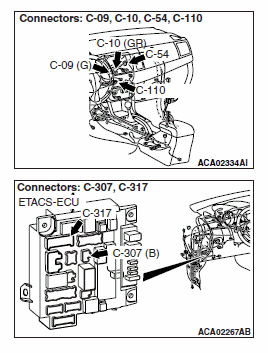

Fig 3: Locating USB Box/Hands Free Module Connectors
G00516486Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
