Lighting Control Sensor Removal And Installation: Notes

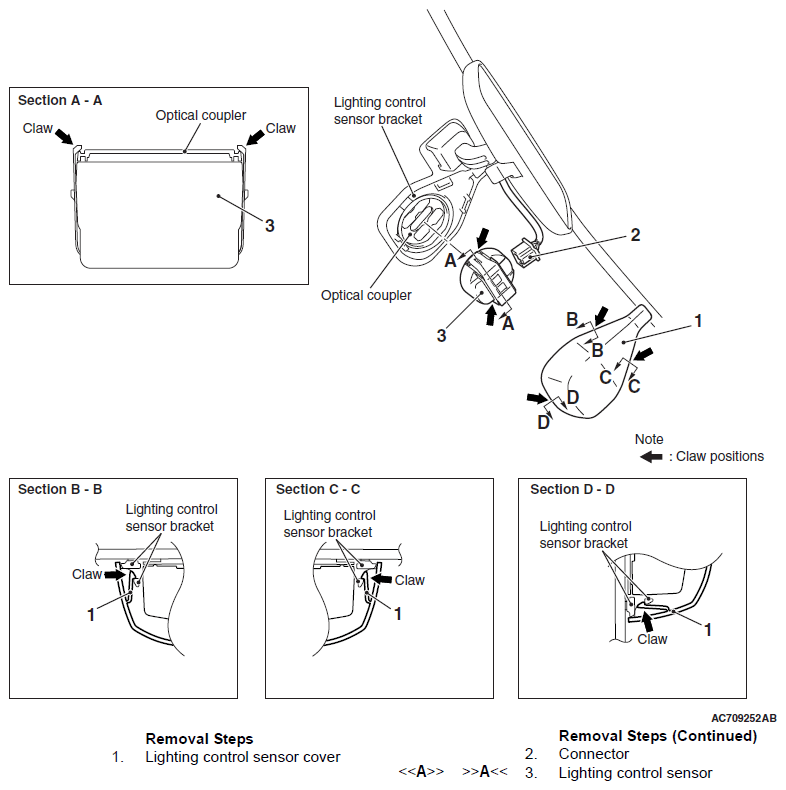

Fig 1: Identifying Lighting Control Sensor
G06678201Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
