DTC B16A5: Turn-Signal Light (RH) Short Circuit: Notes

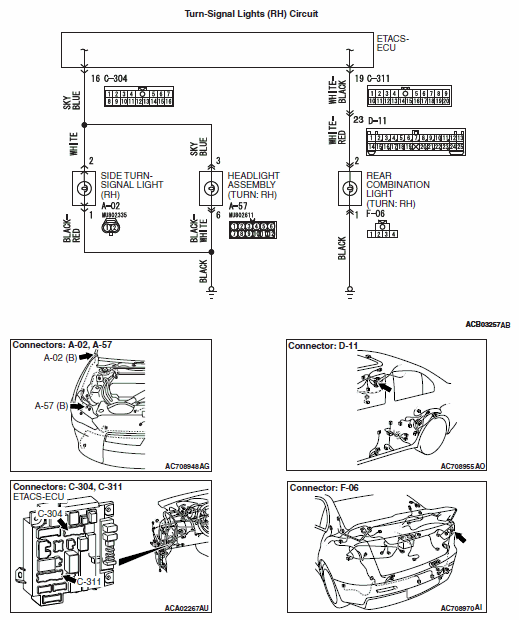

Fig 1: Turn-Signal Lights (RH) Circuit Diagram
G00527919Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
