Inspection Procedure 2: Steering Wheel Audio Remote Control Switch Does Not Function - Vehicles With MMCS: Notes

CAUTION:

Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

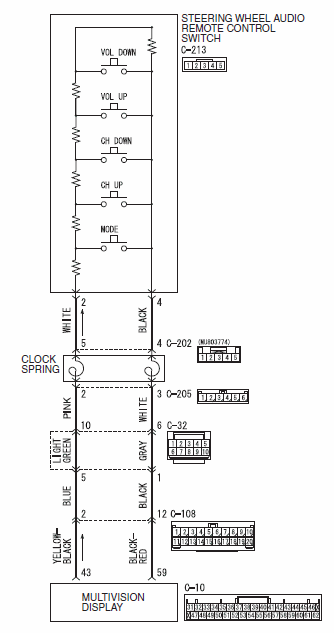

Fig 1: Steering Wheel Audio Remote Control Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Locating Connectors C-10, C-32 & C-108

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Locating Connectors C-202, C-205 & C-213

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
