INSPECTION PROCEDURE 8: The Rain Sensitive AUTO Wiper Function Works Even Though There Is No Rainfall <Vehicles With Lighting Control Sensor>: Notes

CAUTION:

Whenever ECU is replaced, ensure that the input and output signal circuits are normal.

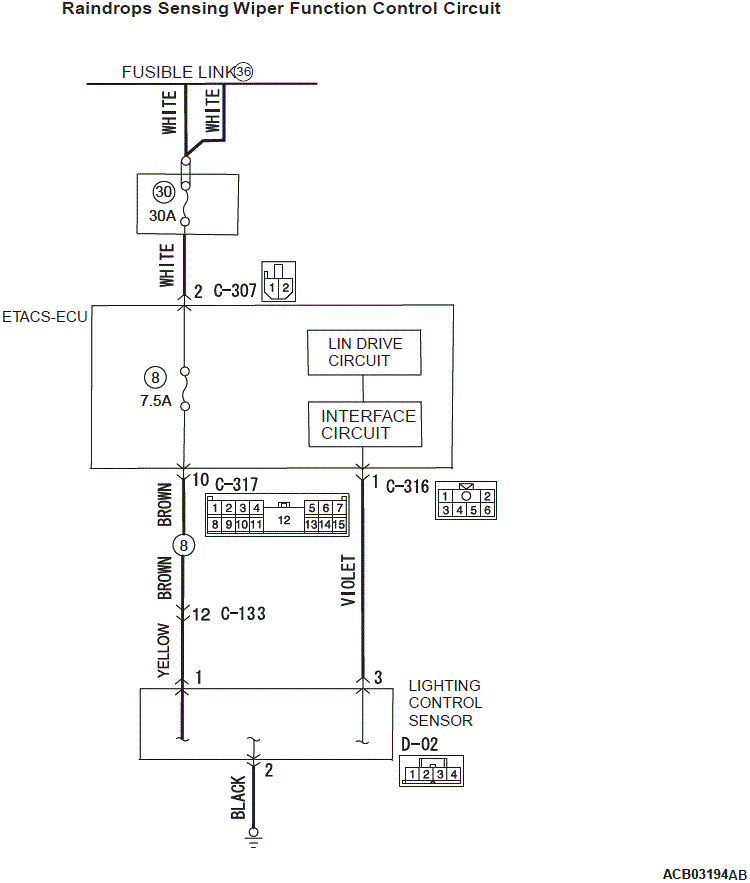

Fig 1: Raindrops Sensing Wiper Function Control Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

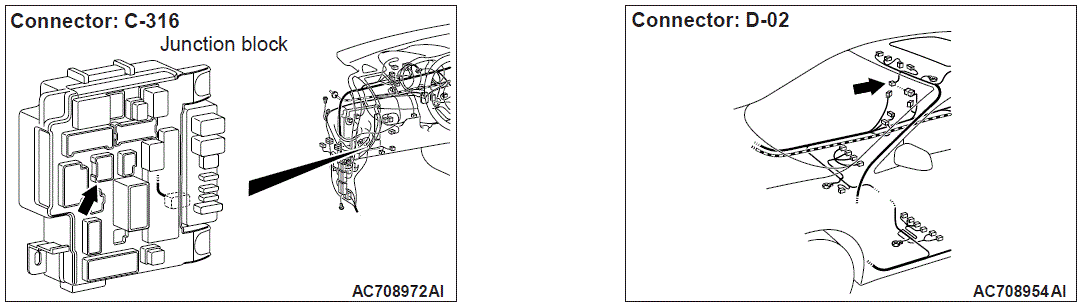

Fig 2: Connector C-316 & D-02 Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
