Monitor Check

WARNING: This page is about a different variant/trim than selected.

Select "Monitor Check" on "Service" screen.

Fig 1: Service Screen Display - Monitor Check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Eight color bars will be displayed.

Fig 2: Service Screen Display - Eight Color Bars
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

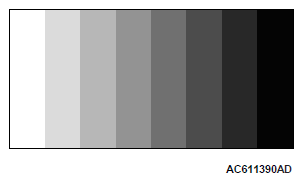

When "Enter" is pressed on the navigation unit joystick while the eight color bars are shown, gray scale will be displayed with a 16-step gradation.

Fig 3: Service Screen Display - Gray Scale With 16-Step Gradation
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

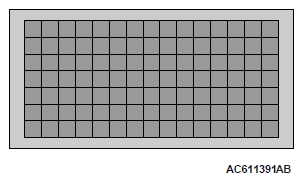

When "Enter" is pressed while the gray scale is shown with a 16-step gradation, a crosshatch pattern will be displayed (Each cell should be square).

Fig 4: Service Screen Display - Crosshatch Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

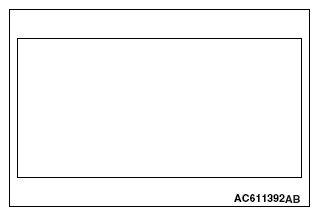

When "Enter" is pressed on the navigation unit joystick while the crosshatch pattern is shown, the screen will turn white.

Fig 5: Service Screen Display - White Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

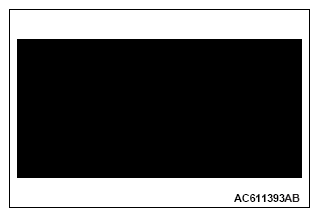

When "Enter" is pressed on the navigation unit joystick while the screen is white, it will turn black.

Fig 6: Service Screen Display - Black Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

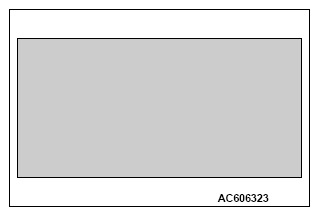

When "Enter" is pressed on the navigation unit joystick while the screen is black, the screen will turn red.

Fig 7: Service Screen Display - Red Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

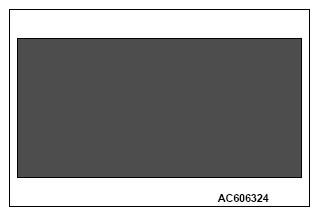

When "Enter" is pressed on the navigation unit joystick while the screen is red, it will turn green.

Fig 8: Service Screen Display - Green Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Enter" is pressed on the navigation unit joystick while the screen is green, it will turn blue.

Fig 9: Service Screen Display - Blue Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When "Enter" is pressed on the navigation unit joystick while the screen is green, it will return to the "Service" screen.
