>>C<< Tie-Rod End/Jam Nut Installation

Screw in the tie-rod to the length shown in the illustration below, and hand-tighten the locking nut.

NOTE: Install the steering gear and linkage to the body, adjust the toe-in, and then tighten the jam nut to the specified torque.

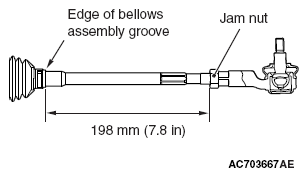

Fig 1: Identifying Tie-Rod Standard Value
G06677738Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
