How To Read Diagnostic Trouble Codes

Turn the ignition switch to the "ON" position while press the "COAST/SET" switch. Then, within one second, release the "COAST/SET" switch and press the "ACC/RES" switch.

Fig 1: Identifying Cruise Control Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Read a DTC by observing the flash display pattern of the "CRUISE" indicator light in the combination meter.

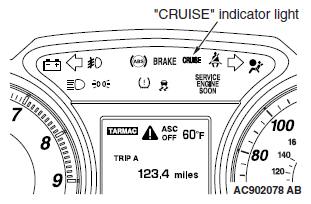

Fig 2: Identifying CRUISE Indicator Light
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Diagnostic result display method when using the "CRUISE" indicator light

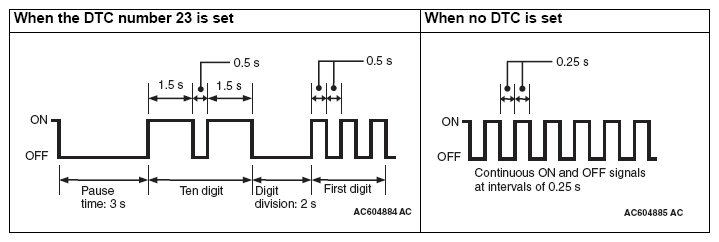

Fig 3: CRUISE Indicator Light Blinking Pattern

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Other on-board diagnostic items are also output as voltage waveforms corresponding to DTC numbers.
