General Information

WARNING: This page is about a different variant/trim than selected.

To the Mitsubishi multi-communication system (MMCS), the multivision display (7-inch liquid crystal display of wide 2 DIN size) with built-in hard disk drive (40 GB) and CD/DVD drive has been installed. (The map data includes Hawaii, Alaska, Puerto Rico, and the Virgin Islands.)

The NAVTEQ map data has been stored. (Map data stored in hard disk drive)
The 7-inch wide liquid crystal monitor has been adopted. The operation switch for operability has been equipped.
Most sophisticated LSI* has been used as one for car navigation system.
NOTE: *: LSI stands for Large Scale Integration, and is a large-scale integrated circuit (IC) containing between 1, 000 and 100, 000 circuit elements.
U.S. English, French, and Spanish are available to select.
Adopting the Rockford Fosgate® premium sound system enables a great variety of sound and field settings through communication with the audio amplifier.
The hands free interface system can be used by connecting the hands free module.
By attaching the satellite radio tuner, the SIRIUS™ satellite radio broadcasting becomes available.
The language collaboration control between meter and hands free module is supported.
The multivision display can be operated by the steering wheel audio remote control switch.

Fig 1: Multivision Display
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

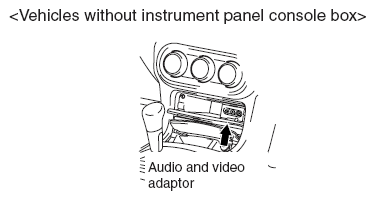

Fig 2: Locating Audio & Video Adaptor - Vehicles Without Instrument Panel Console Box
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

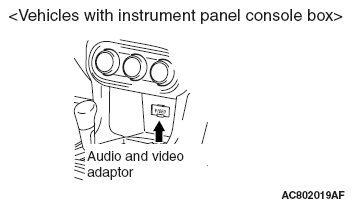

Fig 3: Locating Audio & Video Adaptor - Vehicles With Instrument Panel Console Box
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The audio and video adapter has been established to the center tray in order to connect visual equipment such as game machine and video player.

FUNCTION CHART

Function	Content
Navigation	Displays the navigation functions including the map display, search, guidance, information search. Also, calculates Carpool/HOV lane. The sound volume of the navigation guidance varies according to the vehicle speed by the vehicle speed-linked function.
Current vehicle location	Displays the position information of current location. (Longitude and latitude, altitude, GPS reception status)
CD/DVD	Plays the CD or DVD inserted to the drive (Designed for MP3/WMA file)
Music server	Plays music recorded in the hard disk drive and records a music CD.
Radio	Displays the receiving station information. Also, the operation of receiving channel can be performed.
Sound control	Adjusts the high/middle/low tone and balance. Function to set music type, sound field, and others when adopting the Rockford Fosgate® premium sound system
AUX	Plays the image and sound input through the audio and video adapter. (Image cannot be seen during driving because of the driving restriction.)
USB/iPod	Plays the sound input through the USB adapter.
Drive information	Displays the average fuel consumption, instantaneous fuel consumption, possible cruising distance, driving time, and lap time.
Environmental data	Displays the atmospheric pressure, altitude and ambient temperature.
A/C information	Displays the A/C information.
ETACS function customization	ETACS-ECU customization function
Mobile Phone/Bluetooth Audio	Function to operate the hands free interface system using the multivision display < Vehicles with hands free module >
SIRIUS	Displays the receiving channel and receiving channel name, and changes the band ranges and channels. < Vehicles with satellite radio tuner >
Calendar	Displays the calendar.
