Audio And Video Adapter Inspection

WARNING: This page is about a different variant/trim than selected.

Check that continuity exists between the terminal and the pin jack of audio and video adapter.

TERMINALS CONTINUITY REFERENCE CHART

The connecting position of pin jack side circuit tester	Terminal number	Measurement value
1	2	Continuity exists (2 Ω or less)
2	1
3	5
4	4
5	5
6	6

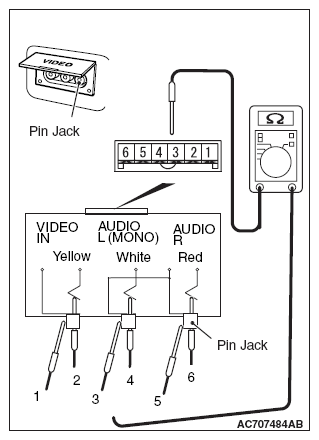

Fig 1: Checking Continuity Exists Between Terminals & Pin Jacks Of Audio/Video Adapter

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
