Can Communication Confirmation

WARNING: This page is about a different variant/trim than selected.

Select "CAN Communication Confirmation" on "Service" screen.

Fig 1: Service Screen Display
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If "List Of Connection Equipment" is selected on "CAN Communication Confirmation" screen, the system will determine which equipment is installed according to the connected equipment reference table. Then the equipment which are connected to the CAN box unit will be displayed.

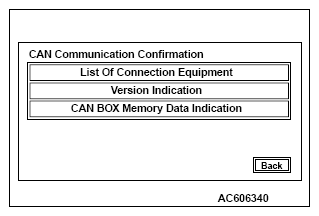

Fig 2: Service Screen Display - CAN Communication Confirmation

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAN BOX UNIT-CONNECTED EQUIPMENT REFERENCE TABLE

CAN BOX UNIT-CONNECTED EQUIPMENT REFERENCE CHART

Screen indication	Equipment
HVAC	A/C-ECU
FCM	ETACS-ECU
ORC	SRS-ECU
CCN	Combination meter
WCM	Wireless control module

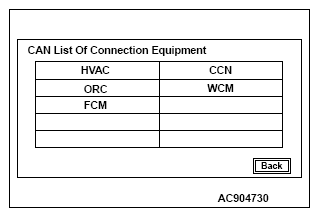

Fig 3: Service Screen Display - CAN List Of Connection Equipment

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If "Version Indication" is selected on "CAN Communication Confirmation" screen, the version for each item is displayed.

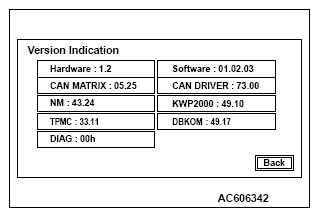

Fig 4: Service Screen Display - Version Indication
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If "CAN BOX Memory Data Indication" is selected on "CAN Communication Confirmation" screen, "CAN BOX Memory Data Indication" will be displayed.

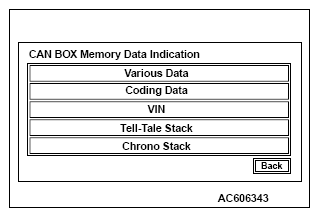

Fig 5: Service Screen Display - CAN BOX Memory Data Indication
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If any item is selected on "CAN BOX Memory Data Indication" screen, its relevant information is displayed.
- Various Data

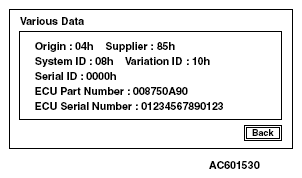

  Fig 6: CAN BOX Memory Data Indication Screen Display - Various Data
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Coding Data

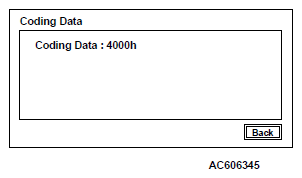

  Fig 7: CAN BOX Memory Data Indication Screen Display - Coding Data
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- VIN

  Fig 8: CAN BOX Memory Data Indication Screen Display - VIN
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Tell-Tale Stack

  Fig 9: CAN BOX Memory Data Indication Screen Display - Tell-Tale Stack
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Chrono Stack

  Fig 10: CAN BOX Memory Data Indication Screen Display - Chrono Stack
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
