TMC Sensitivity

WARNING: This page is about a different variant/trim than selected.

Select "TMC sensitivity" on "Service" screen.

Fig 1: Service Screen Display - TMC Sensitivity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The information of TMC station is displayed.
NOTE: When the now-received information is from selected TMC station, "TMC_station" is displayed on the upper right of the screen. "-" is displayed when the information is not received.

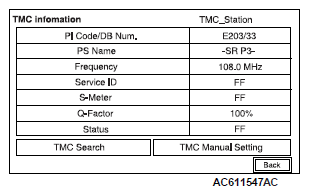

Fig 2: Service Screen Display - TMC Station Information
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select "TMC Search" on the "TMC information" screen to search the TMC station that can be received, and update and display the contents of "Found station list".
Select "TMC station" displayed on the "Found station list" and press "decision" switch to update the received TMC station and return to the "TMC information" screen. The information of selected TMC station is displayed on the TMC information screen.

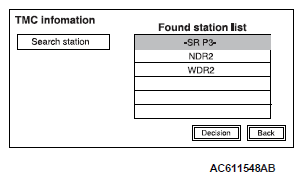

Fig 3: Service Screen Display - Found Station List
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select "TMC Manual Search" on the "TMC information" screen to set the frequency by "<" or ">" switch.

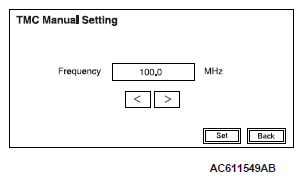

Fig 4: Service Screen Display - TMC Manual Setting
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Update the received TMC station by "Set" switch and return to the "TMC information" screen. The information of selected TMC station is displayed on the TMC information screen.
