>>A<< Cooler Tube Assembly Installation

Install by aligning the mating marks of cooler tube assembly and return tube assembly.

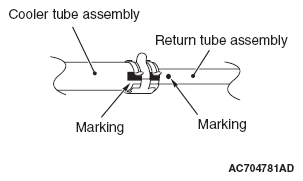

Fig 1: Aligning Mating Marks Of Cooler Tube Assembly & Return Tube Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
