<<B>> Driver's Air Bag Module Connector Disconnection

Slide the outer housing of the driver's air bag module connector in the arrow direction shown in illustration below and disconnect the connector.

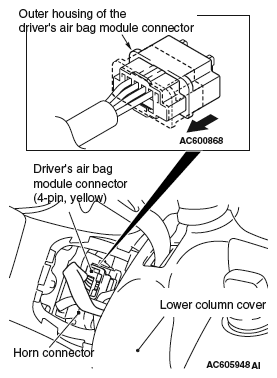

Fig 1: Identifying Driver's Air Bag Module Connector
G05394792Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
