Lancer SPORTBACK

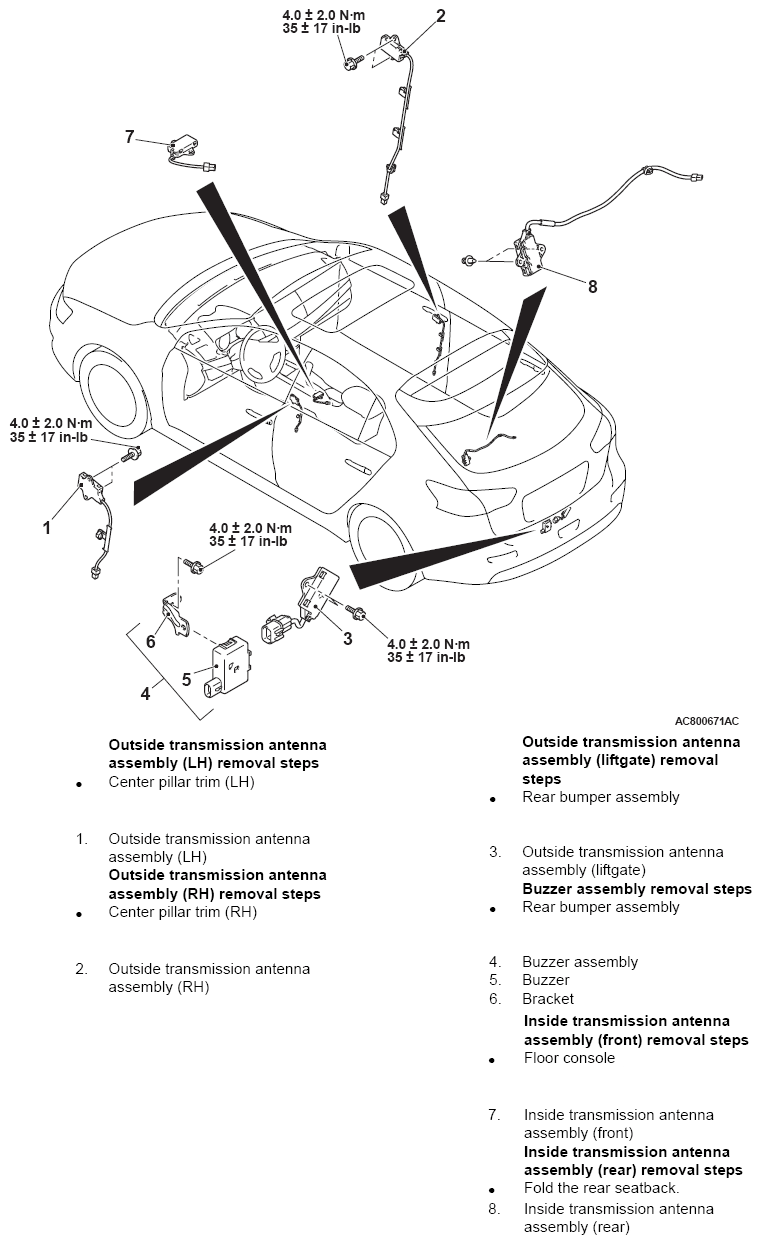

Fig 1: Outside/Inside Transmission Antennas And Buzzer Assemblies With Torque Specifications (Lancer Sportback)
G08294732Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
