Inspection Procedure 2: Steering Wheel Audio Remote Control Switch Does Not Function - Vehicles With MMCS: Notes

CAUTION: Before replacing the multivision display, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

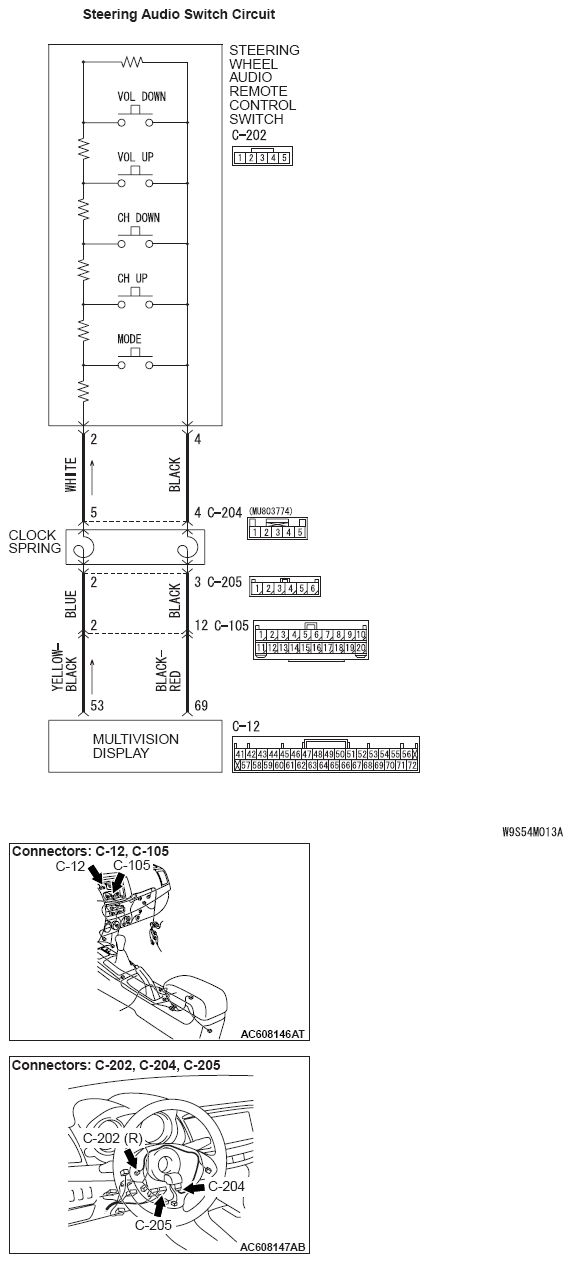

Fig 1: Steering Audio Switch Circuit
G08296293Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
