<< C >> Driver's Air Bag Module Connector Removal

Slide the outer housing of the driver's air bag module connector in the arrow direction shown in the illustration below, and disconnect the connector.

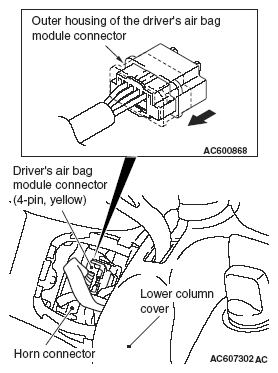

Fig 1: Sliding Outer Housing Of Driver's Air Bag Module Connector
G05385100Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
