DTC C1520: Motor Turning Angle (Input); DTC C1521: Motor Turning Angle (Output); DTC C1522: Motor Turning Angle Range: Notes

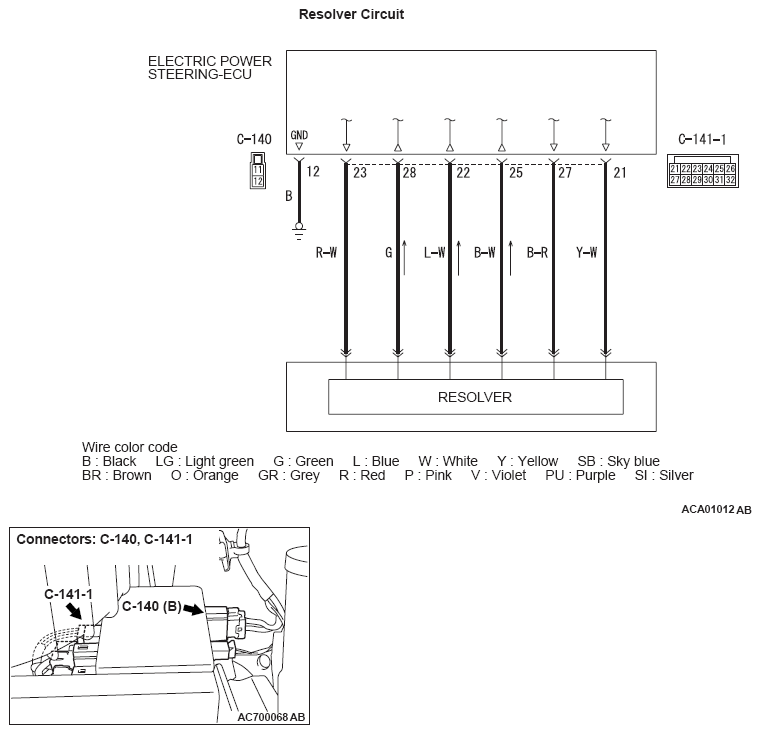

Fig 1: Resolver - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If there is any problem in the CAN bus lines, an incorrect DTC may be set. Prior to this diagnosis, diagnose the CAN bus lines (Refer to DIAGNOSTIC TROUBLE CODE DIAGNOSIS ).
• Whenever ECU is replaced, ensure that the CAN bus lines are normal.
