Inspection Procedure 1: Scan Tool Cannot Communicate With Electric Power Steering System - ECU Power Supply Circuit System Check: Notes

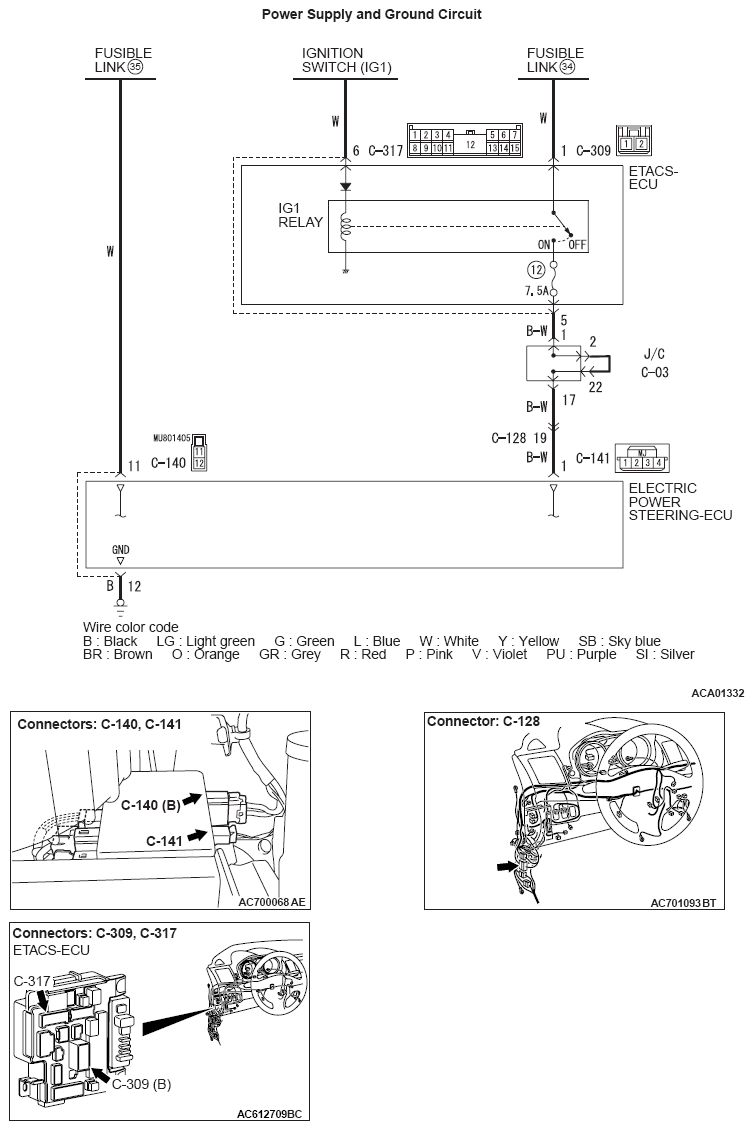

Fig 1: Power Supply And Ground - Circuit Diagram
G07032760Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
