Removal And Installation: Notes

CAUTION:

Before removing the steering wheel, driver's air bag module assembly and Knee Air Bag Module refer to SERVICE PRECAUTIONS , Driver's AIR BAG MODULE(S) AND CLOCK SPRING or DRIVER'S AIR BAG MODULE AND CLOCK SPRING < RALLIART > and KNEE AIR BAG MODULE .
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION ). < Vehicles with ASC >

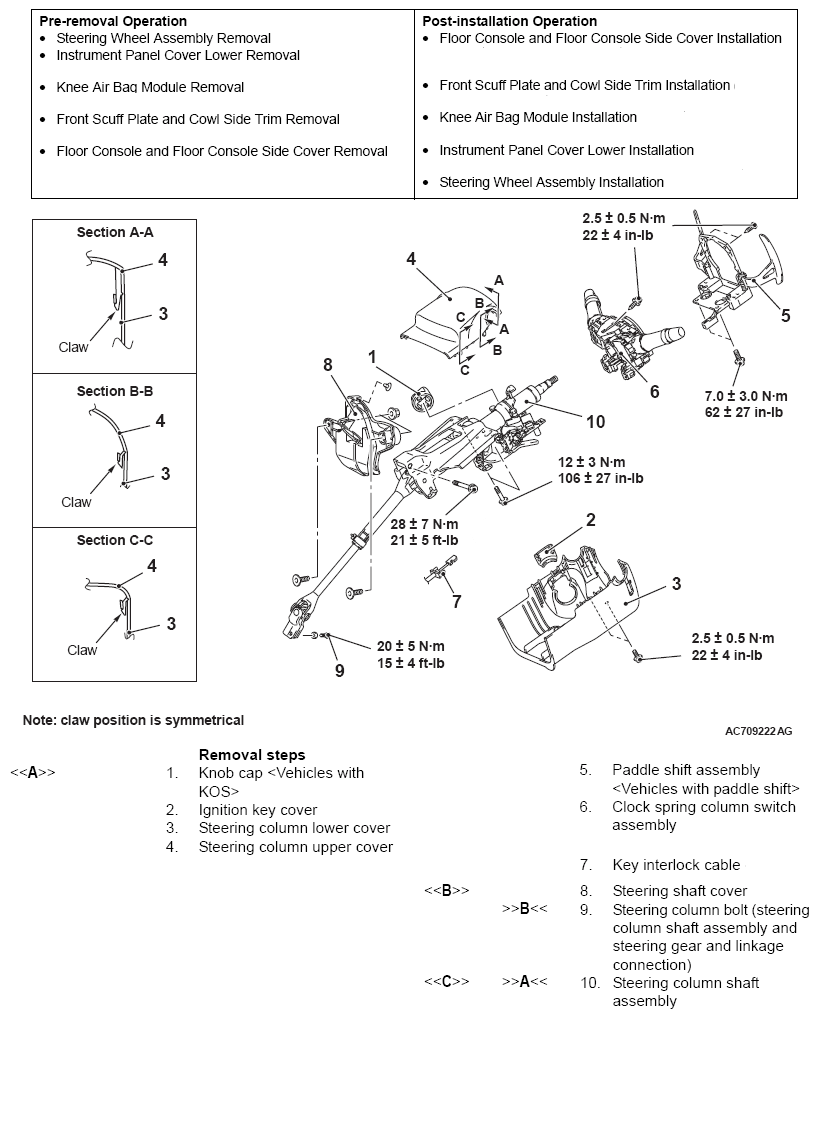

Fig 1: Steering Column Shaft Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
