Vehicles With Aluminum Pedal Pad

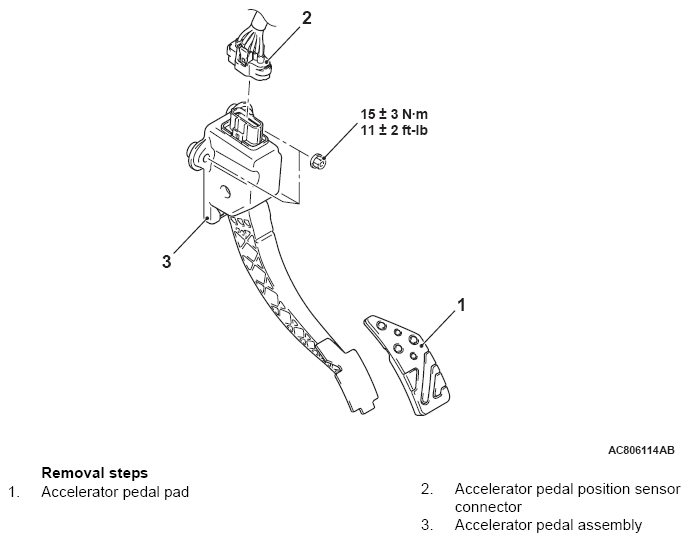

Fig 1: Accelerator Pedal Components With Torque Specification (Vehicles With Aluminum Pedal Pad)
G08290743Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
