DTC B1201: Abnormal Fuel Information: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:

Whenever the ECU is replaced, ensure that the communication circuit is normal.

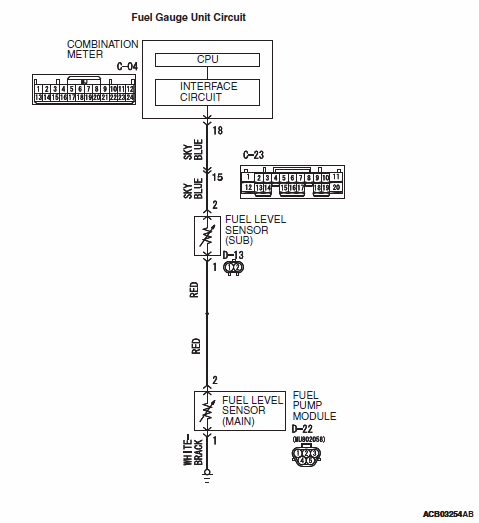

Fig 1: Fuel Gauge Unit Circuit Diagram
G00527939Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

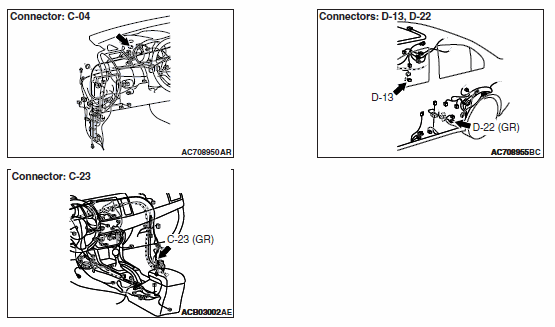

Fig 2: Locating Fuel Gauge Unit Connectors
G00527940Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
