Inspection Procedure 10: Front Passenger's Door Lock/Unlock Switch Does Not Work: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

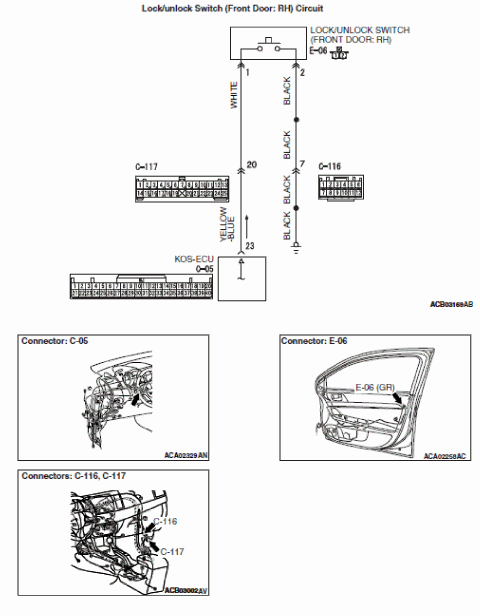

Fig 1: Lock/Unlock Switch Circuit Diagram (Front Door RH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
