Inspection Procedure 15: The Trunk Is Not Opened When The Keyless Operation Key "TRUNK" Button Is Operated: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:

Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

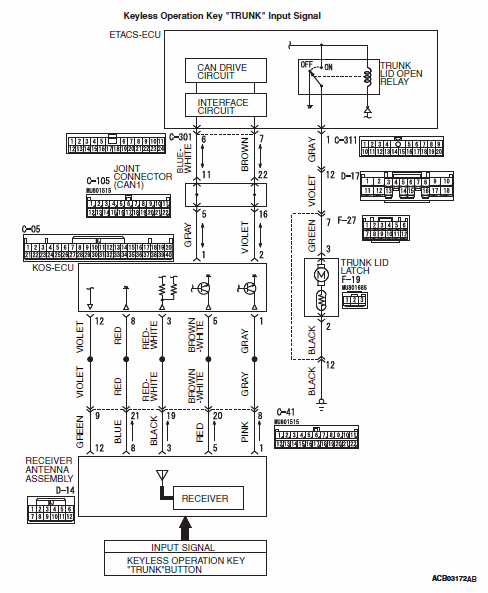

Fig 1: Keyless Operation Key "TRUNK" Input Signal Circuit Diagram
G00529022Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

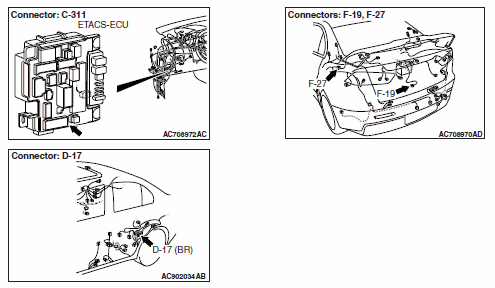

Fig 2: Keyless Operation Key "TRUNK" Input Signal Connector Locations
G00529023Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
