Receiver Antenna Module

WARNING: This page is about a different variant/trim than selected.

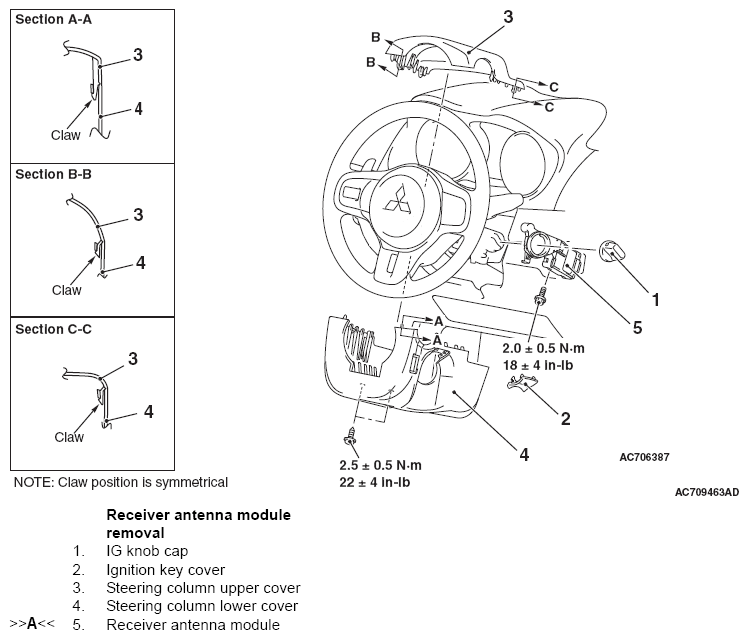

Fig 1: Receiver Antenna Module With Torque Specifications
G06675726Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
