SOFTWARE UPDATE (S/W Update)

WARNING: This page is about a different variant/trim than selected.

The software of the hands free module can be updated.

NOTE:

"S/W Update" is displayed when an USB that contains files to update the hands free module is connected.
When the software update cannot continue because of improper removal of the USB during the update or of an incorrect update code, the display returns to the "Hands Free Module" screen. At this time, warning is not displayed.

Press "S/W Update."

Fig 1: Hands Free Module Screen - S/W Update
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select "Yes." (When "No" is selected, the display returns to the "Hands Free Module" screen.)

Fig 2: Hands Free Module Screen - Yes
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Input the 4-digit code for update. ("Enter" is displayed in gray until the 4-digit code is input.)

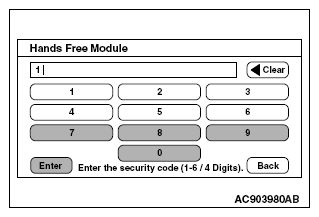

Fig 3: Hands Free Module Screen - 4-Digit Code
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Update starts if the 4-digit code is normal.
NOTE:
- When the input code is normal, the speaker will not output the sound input to the microphone unit until the display returns to the "Hands Free Module" screen.

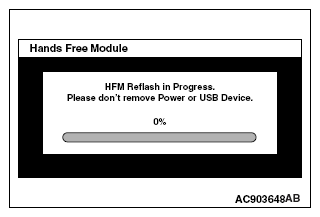

  Fig 4: Hands Free Module Screen - 4-Digit Code Update
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- When the data rewriting operation is failed, the error screen is displayed.

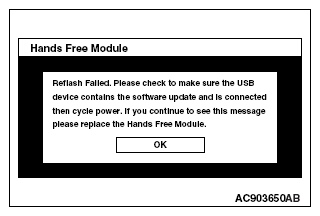

  Fig 5: Hands Free Module Screen - Data Rewriting Operation Failed
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The "Reboot" screen is displayed when the update is completed successfully.

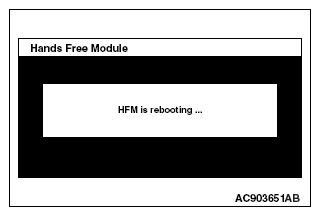

Fig 6: Hands Free Module Screen - Reboot
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
After the hands free module is rebooted, the "Update successfully." screen is displayed. When "OK" is selected, the display returns to the "Hands Free Module" screen.

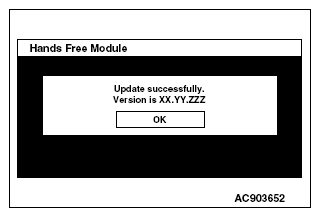

Fig 7: Hands Free Module Screen - Update Successfully
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
