Diagnosis Mode < Vehicles With Radio And Cd Player >

WARNING: This page is about a different variant/trim than selected.

Enter the diagnosis mode according to the following steps:

Turn the Ignition switch to the "ACC" or "ON" position and switch off the radio and CD player.

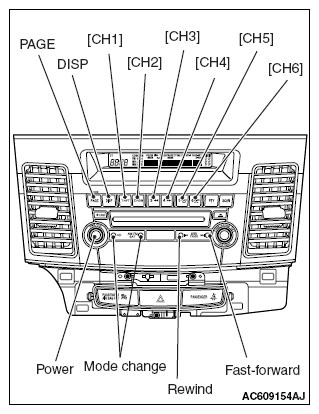

Press the following buttons in that order within sixty seconds from step (1).
1. [CH1] button.
2. Rewind button.
3. Fast-forward button.
4. [CH4] button.
NOTE:
- When the "Power" button of the radio and CD player is pressed during the diagnosis mode, the diagnosis mode will be cancelled, thus switching off the radio and CD player. However, if the "Power" button is pressed while the hands free module is being updated, the update will not be cancelled.
- When the "Mode change" button (FM/AM, CD) is pressed during diagnosis mode except the hands free module update, the diagnosis mode will be cancelled and relevant operation will be carried out.
- When an invalid button is pressed during diagnosis mode except the hands free module update, the diagnosis mode will be cancelled, thus switching off the radio and CD player.
- During the diagnosis mode, voice which is input through the microphone unit is played through a relevant loudspeaker.
"HFM DIAG" is displayed.

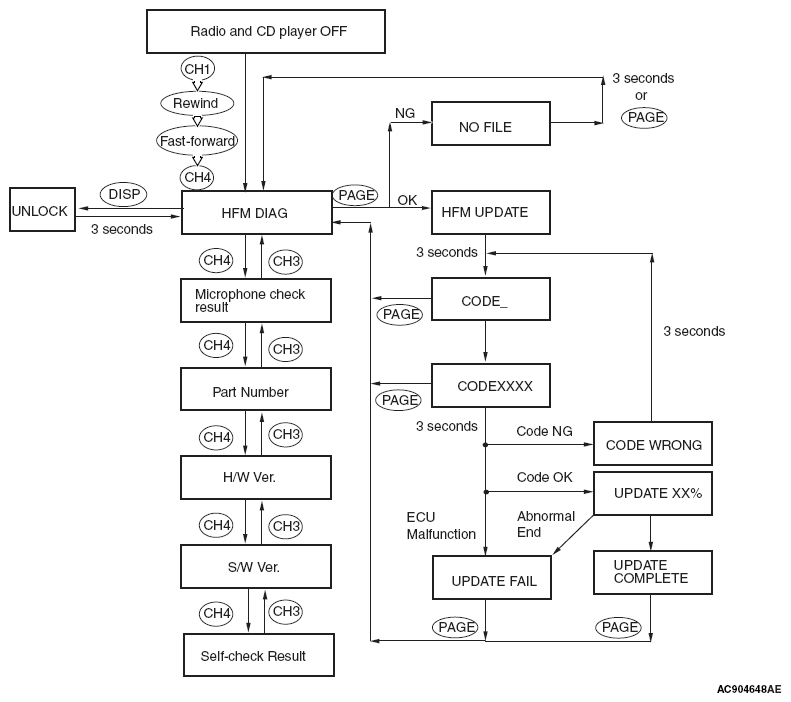

Fig 2: Radio/CD Player Diagnosis Flow Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

RADIO AND CD PLAYER REFERENCE CHART

Description in the illustrations	Actual display	Condition
UNLOCK	UNLOCK	Four-digit password, which has been set by the security function, will be erased.
HFM DIAG	HFM DIAG	Displayed when the diagnosis mode is being entered.
Result of microphone check	MIC Short	Displayed when the line between the microphone and the hands free module is short-circuited.
	MIC Open	Displayed when the line between the microphone and the hands free module is open-circuited.
	MIC OK	Normal status (the line between the microphone and the hands free module is not open/short-circuited)
Part number	PN XXXXXXXX	Eight-digit part number is displayed.
H/W Ver.	H/W XX	Two-digit hardware version is displayed.
S/W Ver.	S/W XXXXXXX	Seven-digit software version is displayed.
Self-check result	HFM OK	Displayed when the hands free module is not defective.
Self-check result	HFM Error	Displayed when the hands free module is suspected to be defective. NOTE: Turn the ignition switch to the "OFF" position once when "ERROR" is displayed. Enter the diagnosis mode by turning the ignition switch to the "ON" position again. If the self-check result shows "ERROR" again, the hands free module is determined to be defective.
NO FILE	NO file	A USB device stores no data.
HFM UPDATE	HFM Update	Displayed when the hands free module update file is found, at the transition to the hands free module update mode, in the USB memory that is connected to the USB adapter.
CODE_	CODE_	Input four-digit code for update. Use the "CH" button when a code is input.
CODE XXXX	Code XXXX	XXXX after Code shows the numbers from 1 to 6, corresponding to the buttons "CH1" to "CH6".
CODE WRONG	Code wrong	The code, which has been input, is wrong.
UPDATING XX%	Updating XX%	Displayed when updating is carried out.
UPDATING COMPLETE	Update complete	The updating mode is complete.
UPDATE FAIL	Update fail	Displayed when the update of the hands free module fails.
