Inspection Procedure 2: steering wheel audio remote control switch does not function. < Vehicles with MMCS >: Notes

CAUTION: Before replacing the multivision display or steering wheel audio remote control switch, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

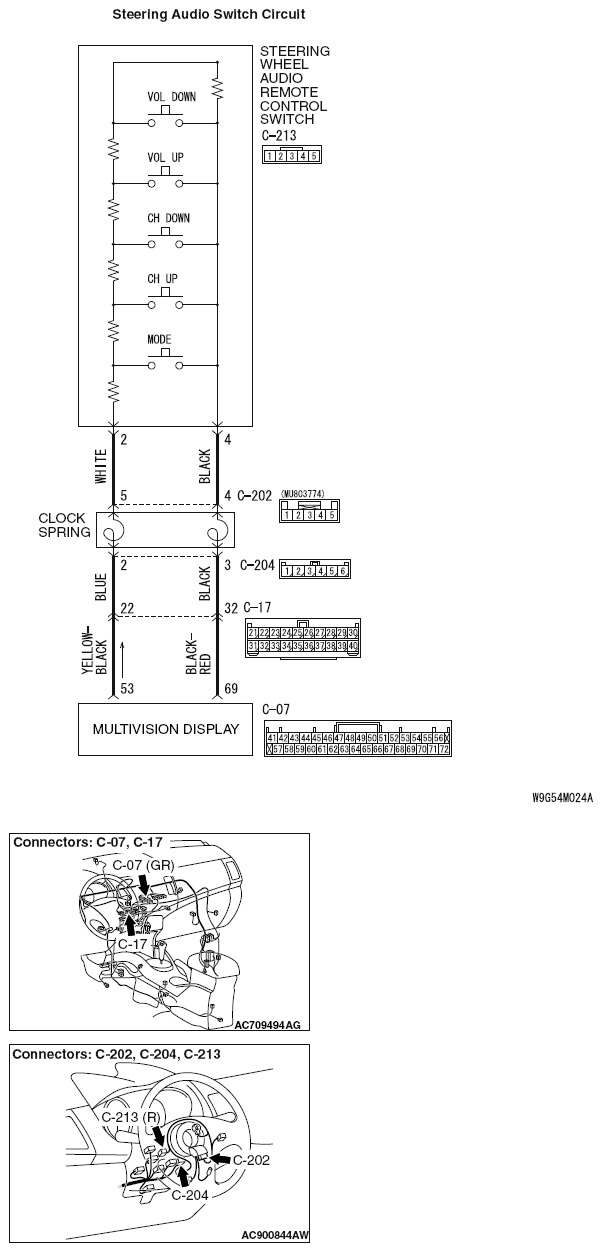

Fig 1: Steering Audio Switch Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
