Driver's Air Bag Module And Clock Spring

CAUTION: On vehicles with ASC, always carry out steering wheel sensor calibration after the clock spring has been installed (Refer to STEERING WHEEL SENSOR CALIBRATION . This is necessary because the ASC-ECU should update the steering neutral point.

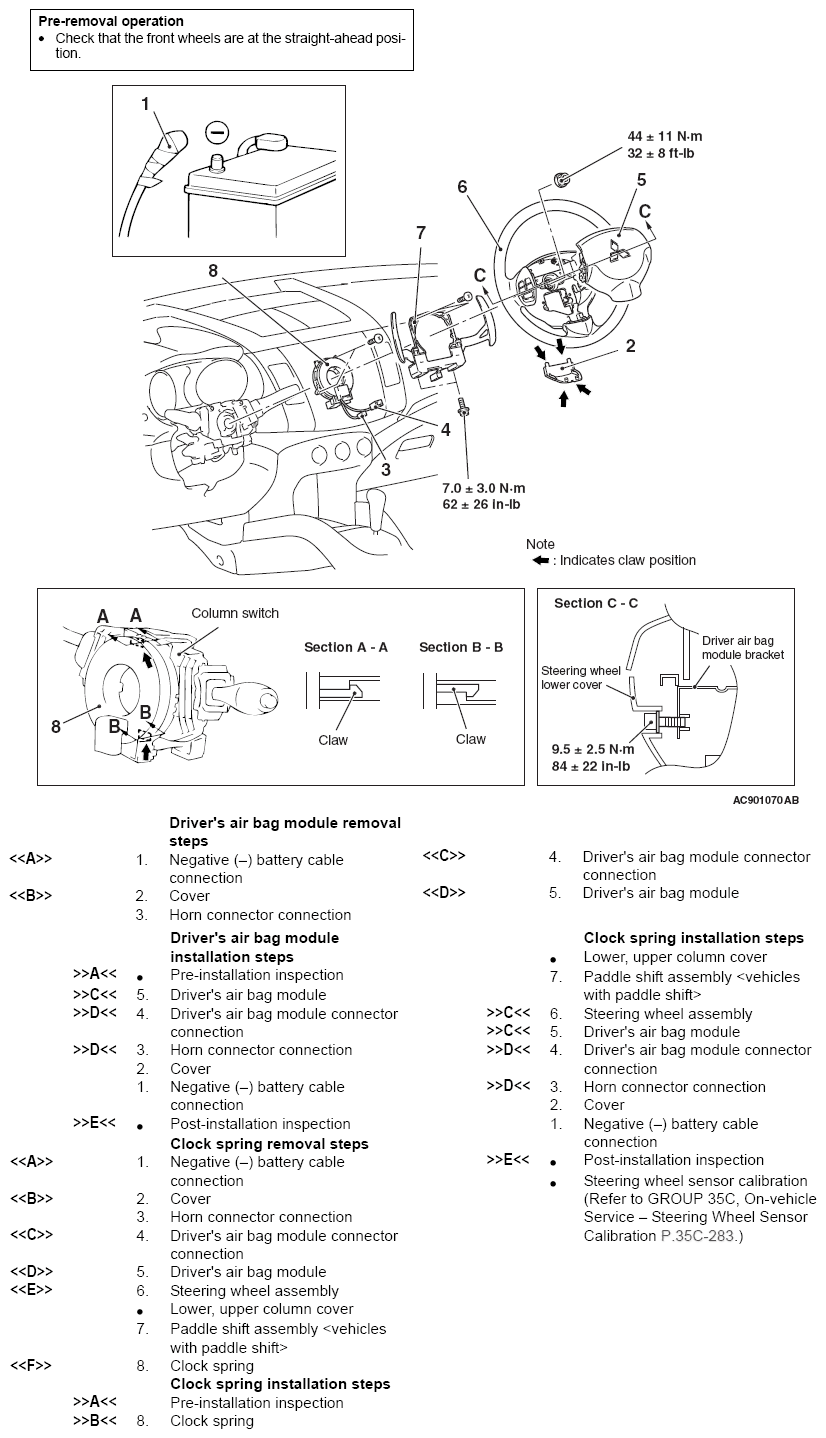

Fig 1: Driver's Air Bag Module And Clockspring Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824:Vehicle Communication Interface (V.C.I.)
- MB991827:M.U.T.-III USB Cable
- MB991910:M.U.T.-III Main Harness A
MB992006: Extra Fine Probe
MB990803: Steering Wheel Puller
