Passenger's (Front) Air Bag Module

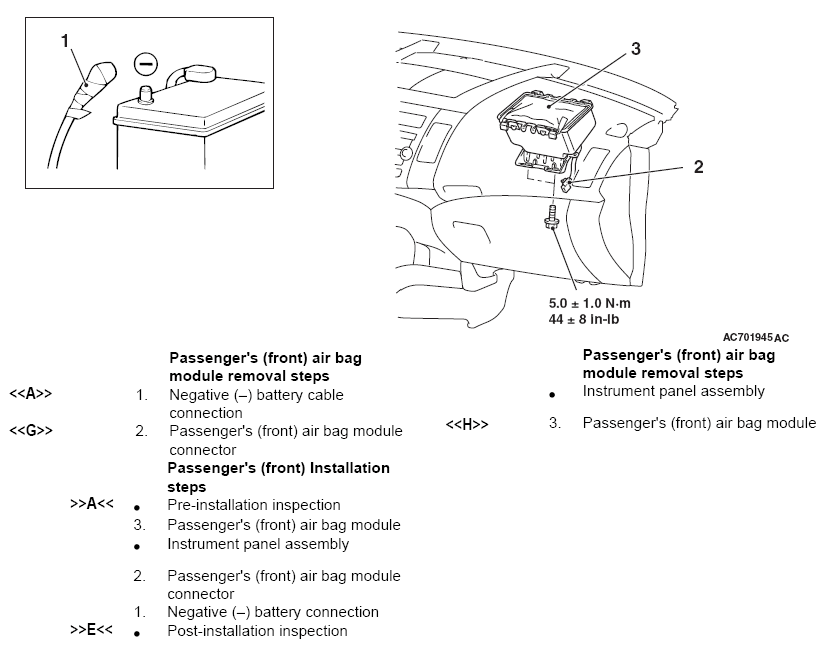

Fig 1: Passenger's (Front) Air Bag Module Replacement Components With Torque Specifications
G07036186Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
