Disassembly And Assembly: Notes

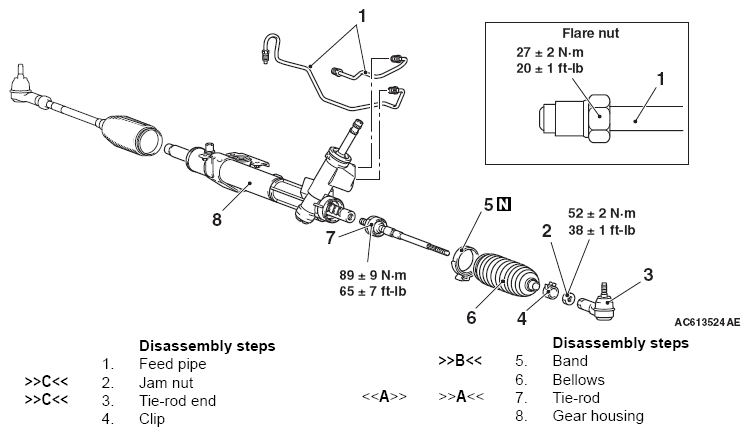

Fig 1: Power Steering Gear Box And Linkage Disassembly/Assembly With Torque Specifications
G07044382Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
